B30104A1

1

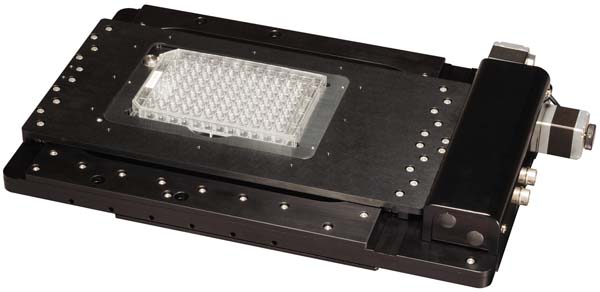

BIXY Stage STD System(LC)A1
Estimate separately
Correspondence microscopes LEICA DMI3000B, DMI4000B, DMI6000B

Product documentation

Description

While it is open control, position repeatability of other company linear scale come with a power stage and equivalent is realized.
Applied to joystick that was improved operability of rate-feed mode switch in addition, and button type keypad that fine move is enabled pertain, too.
In any mutable stage moves speed and unit display.
K standard holder standard support(each companies incubator and thermo plate measures).
"LCI-made ChamlideLC,TC series ", "Tokai hit-made Stage Top Incubator,Thermo Plate series"etc.

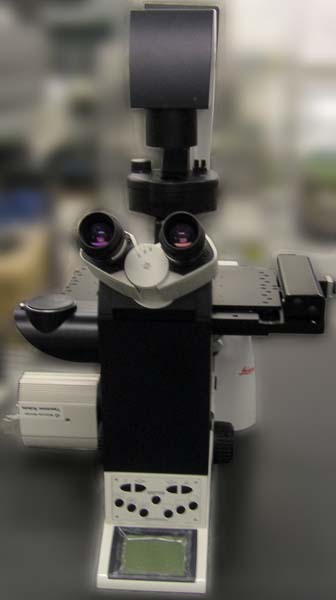

LEICA on-board can be made by a-made inverted microscope.
Imaging in software support.
"MDJ-made Meta series software (MetaMorph etc.) correspondence ", "mitani trading-made bio-imaging software LuminaVision correspondence ".

Specifications

Direction of travel XY axis : two direction
Control method Open loop
Travel X axis:±55mm, Y axis:±37.5mm
Feed screw lead 1mm
Resolution Full step(1/1):2μm(Mechanical) Half step(1/2):1μm(with B30205 Driver controller)
Repeatability within 2μm
Maximum speed 30mm/s(15,000pps,フルステップ), 30mm/s(30,000pps,ハーフステップ)
Material Aluminum alloy,3.6kg
Correspondence microscopes LEICA DMI3000B, DMI4000B, DMI6000B

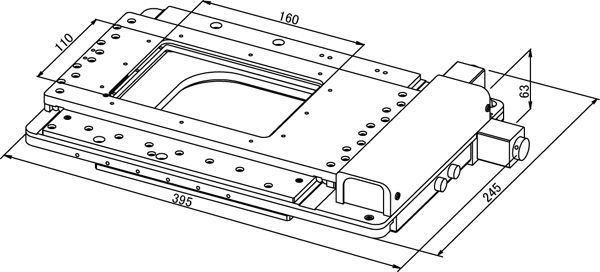

Specification Table

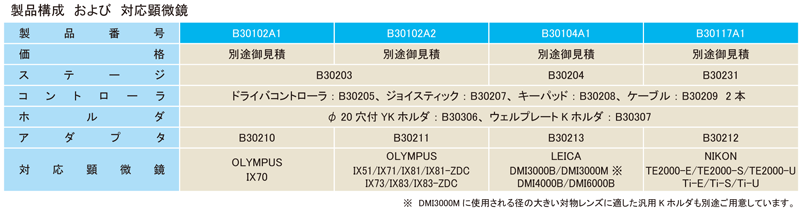

System Configuration Table

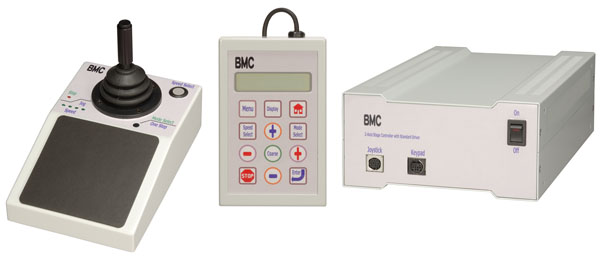

Controller

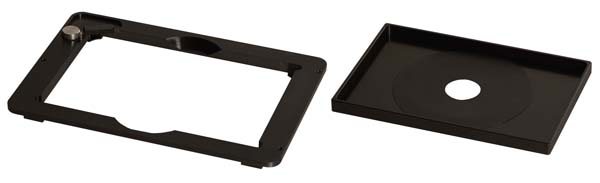

Accessories

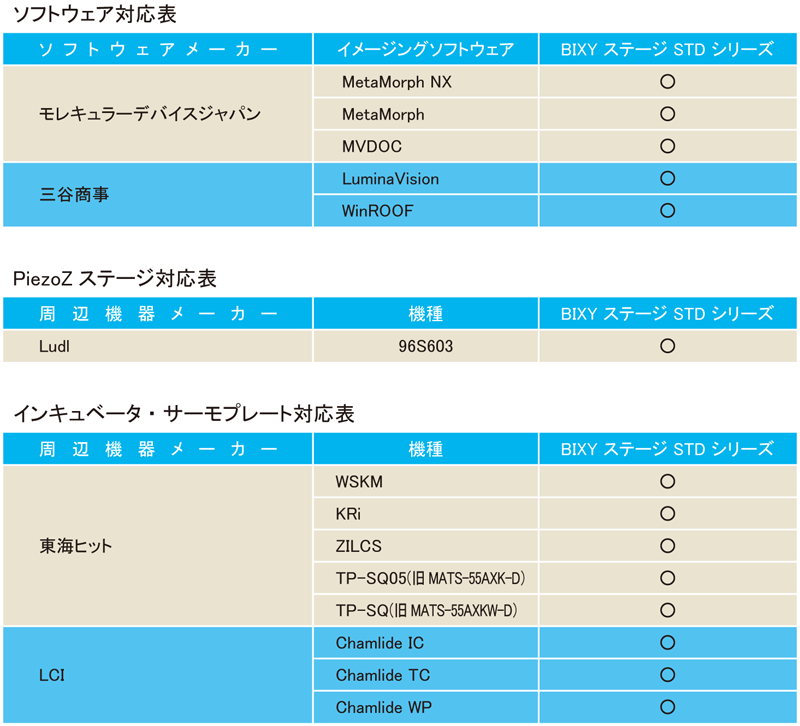

System Macthing Table

Supplementation

Catalog Request

Catalog
