UWZ500FP

1
Ultra-Long Working Distance Zoom Microscope
Estimateseparately

Product documentation

  • 図面PDF
▲PAGE TOP

Description

●Longer W.D. can achieve observing specimens in vacuum chamber.
●Longer W.D. can achieve observing specimens being out of reach before.
●Coaxial reflecting illumination can make image brighter and clearer.
●Zoom ratio 14X can be covered wide range of magnifications.
●λ/4 wave plate, polarizer & analyzer can improve internal reflection.
▲PAGE TOP

Specifications

Zoom ratio 14
Optical magnification 0.28x～3.92x
W.D. 500 mm
W.D. (with λ/4 wave plate) 490 mm
N.A. 0.0058～0.04
Resolution (e-ray)(figuring out theoretically) 57.84 μm～8.39 μm
Focal depth (e-ray)(figuring out theoretically) ±8174.8 μm～171.9 μm
Field number/objective side φ28.6 mm～2.08 mm
Field number/viewing side φ8 mm C-Mount (applicable to 1/2inch CCD camera)
Corrected wave length 400 nm～700 nm
Illumination Coaxial Reflectiing Illumination (standard equipment)
▲PAGE TOP

Objectives line-up

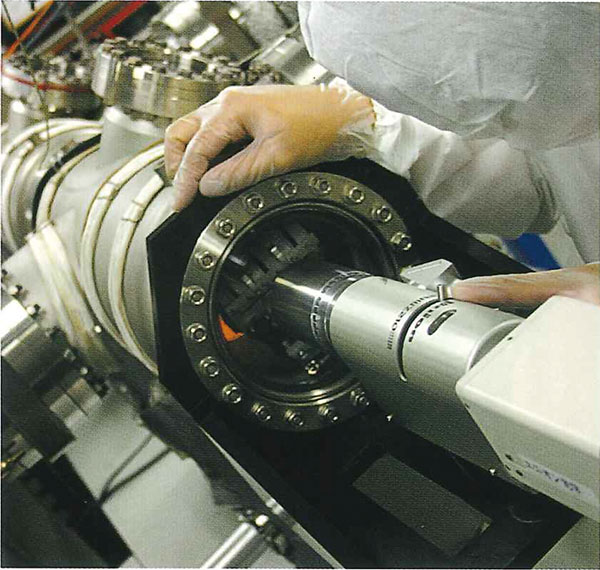

Example of use
