XY Stages

LD-149-C1

1

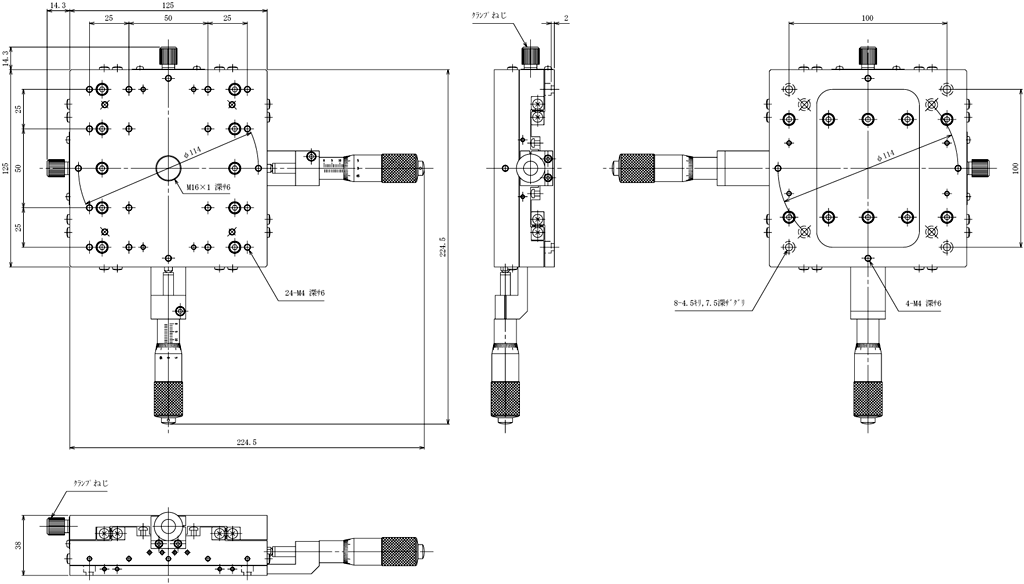

XY axis slim stage 125 x 125 (Steel)
Estimate separately
Travel +/-12.5 mm
Table size 125 mm x 125 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

A thin and lightweight manual stage by using a V-groove and cross rollers (V-CR method) for the moving guide.
Micrometer head position is center of the table.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.
▲PAGE TOP

Specifications

Direction of travel XY axis two directions
Table size 125 mm x 125 mm
Clamp method Clamp plate
Mounting position Center
Transfer mechanism MHN1-25TA (Standard micrometer head)
Travel +/-12.5 mm
Lead of actuator 0.5 mm
Scale interval Micrometer head 0.01 mm
Minimum resolution 0.003 mm
Guiding method V-groove and cross rollers
Travel accuracy HV Straightness (horizontal and vertical) 0.003mm
Travel accuracy YP Yawing 15sec, Pitching 15sec
Moment rigidity Yawing rigidity 0.05 sec/N・cm, Pitching rigidity 0.05 sec/N・cm, Rolling rigidity 0.03 sec/N・cm
Parallelism 0.05 mm
XY Perpendicularity 0.02 mm
Load capacity 255 N (23 kgf)
Weight 4.3 kg
Material / Surface treatment Steel/Hard black chrome
Standard accessories Mounting screw : Hexagon socket head cap screw M4, 4 screws
