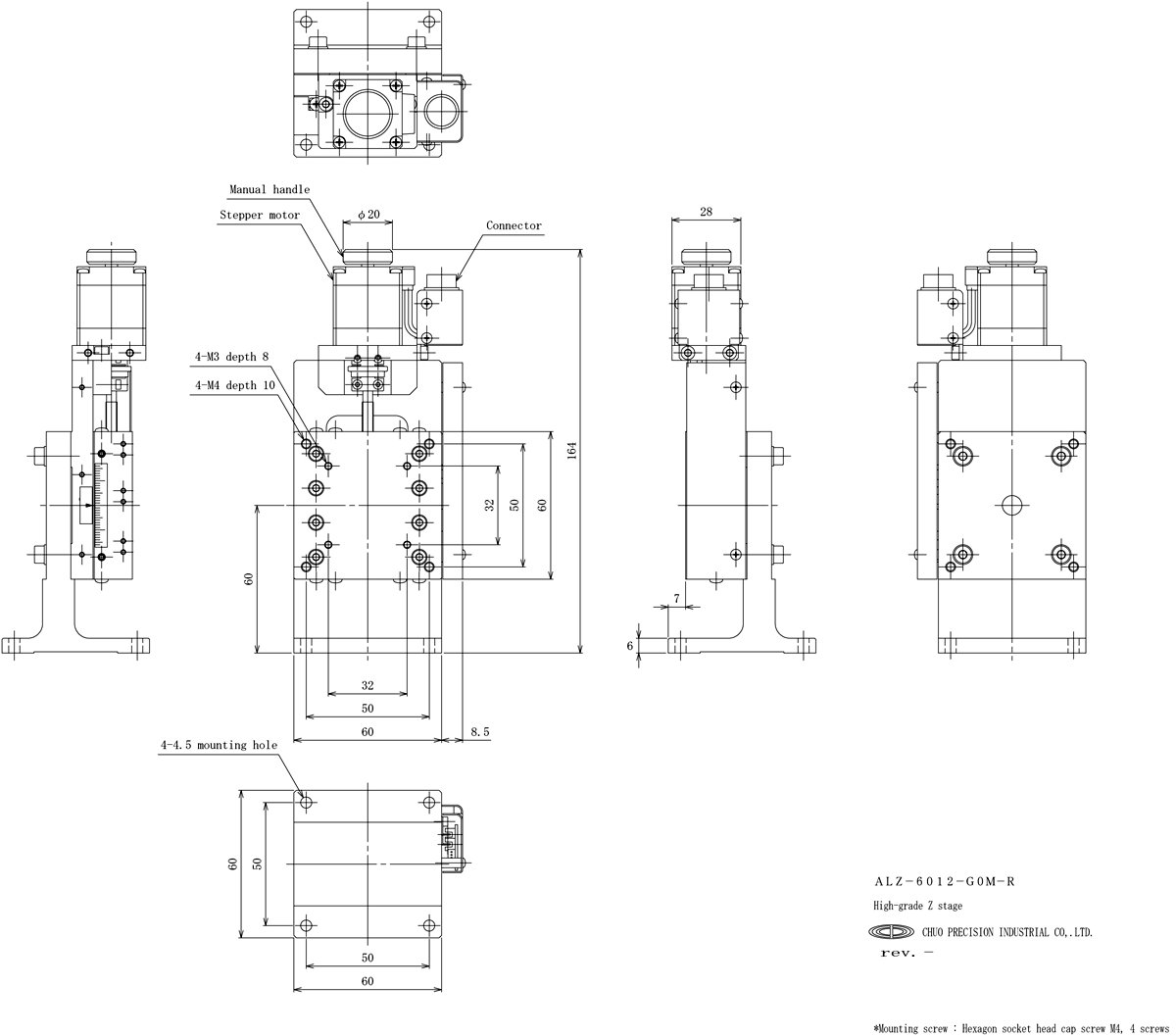

| Direction of travel |
Z axis one direction |
| Travel |
+/-12.5 mm |
| Table size |
60 mm x 60 mm |
| Motor |
Equivalent to PK523HPB (5-wire type pentagonal connection 0.75A /phase) |
| Resolution |
0.001 mm |
| Feed screw |
Precision screw |
| Feed screw lead |
0.5 mm |
| Guiding method |
HG-VCR (V-groove and Cross rollers) |
| Travel accuracy HV |
Straightness (horizontal and vertical) 0.002 mm |
| Travel accuracy YP |
Yawing 20sec, Pitching 30sec |
| Positioning accuracy |
0.014 mm |
| Repeatability |
+/-0.0005 mm |
| Lost motion |
0.005 mm |
| Moment rigidity |
0.15sec/N*cm (Yaw), 0.2sec/N*cm (pitch), 0.2sec/N*cm (roll) |
| Load capacity |
19.6 N (2 kgf) |
| Weight |
0.7 kg |
| Maximum speed |
5 mm/s (at 5,000 pps) |
| Material / Surface treatment |
Aluminum alloy/Black alumite |
| HOME sensor |
Normally closed contact (break contact, B contact) operation, Photo sensor
*non-adjustable |
| Pre-HOME sensor |
- |
| LIMIT sensor |
Normally closed contact (break contact, B contact) operation, Photo sensor
*non-adjustable |
| Compatible cable |
0.75-B type (ACB-STM2, ACB-STM3, ACB-STM-D3, ARC-STM2, ARC-STM-D2, ARC-STM3 or ARC-STM-D3, be sold separately) |
| Standard accessories |
Inspection certificate
Mounting screw : M4 Hexagon socket head cap screws (4 pcs) |
| Supplemental note |
*Dedicated parameter setting for QT-A (Parameter No.4): 36 |
