Goniometer Stages

ATD-C612C-HM

1
Two axis goniometer stage
Estimate separately
Travel Upper axis +/-8°, lower axis +/-6°
Table size 60 mm x 60 mm
Resolution Upper axis 0.000666°, lower axis 0.000512°
YESRoHS対応状況

Product documentation

Description

Motorized goniometer stage with a center of rotation in space.
Our unique complex coupling mechanism enables fine and extremely smooth movements.
It is widely used for precision positioning applications such as cameras and sensors.

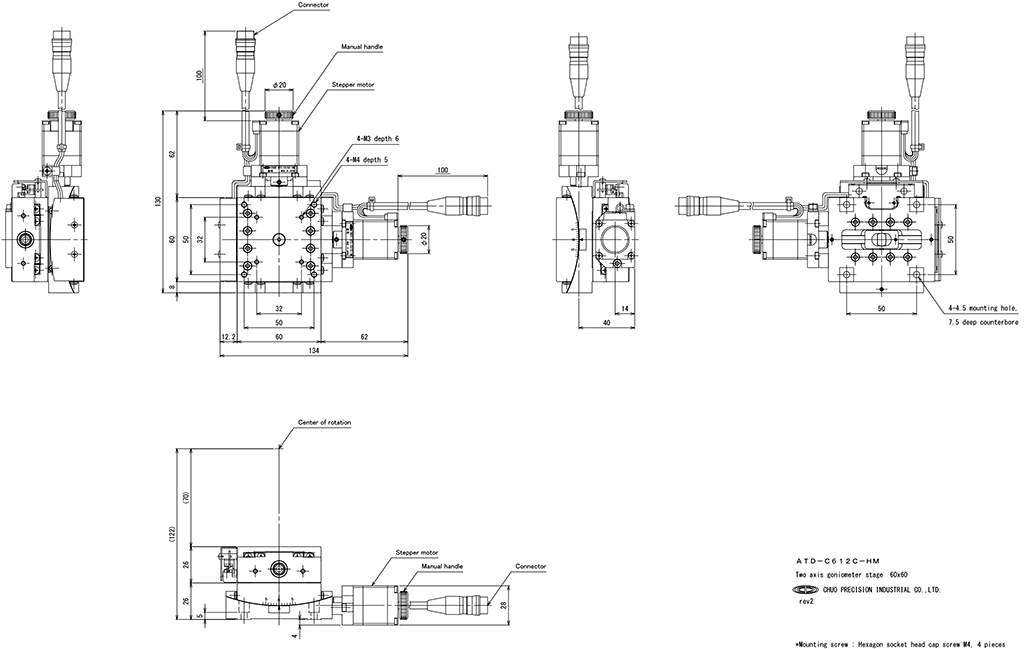

Specifications

Direction of travel Tilt, two axis
Travel Upper axis +/-8°, lower axis +/-6°
Table size 60 mm x 60 mm
Motor Equivalent to PK523HPB (5-wire type pentagonal connection 0.75A/phase)
Resolution Upper axis 0.000666°, lower axis 0.000512°
Feed screw lead 0.5 mm
Transfer mechanism Hybrid coupling mechanism / feed screws
Guiding method V-groove and Cross roller
Positioning accuracy 0.03°
Repeatability +/-0.002°
Stage height 52 mm
Center of rotation 70 mm
Lost motion 0.006°
Load capacity 29.4 N (3 kgf)
Weight 1.2 kg
Maximum speed Upper axis 3.3°/s, lower axis2.6°/s
Material / Surface treatment Aluminum alloy / Black Alumite
HOME sensor Normally closed contact (breake contact, B contact) operation, Photo sensor
*non-adjustable
LIMIT sensor Normally closed contact (breake contact, B contact) operation, Photo sensor
*non-adjustable
Compatible cable 0.75-B type (ACB-STM2, ACB-STM3, ACB-STM-D3, ARC-STM2, ARC-STM-D2, ARC-STM3 or ARC-STM-D3, be sold separately)
Standard accessories Inspection certificate
Mounting screw : M4 Hexagon socket head cap screws (4 pcs)
Supplemental note *Dedicated parameter setting for QT-A (Parameter No.4): 36
