| Direction of travel |
Tilt |
| Travel |
+/-15° |
| Table size |
90 mm x 90 mm |
| Motor |
PK545N18B2 |
| Resolution |
0.002° |
| Transfer mechanism |
Worm gear mechanism |
| Guiding method |
V-groove and Cross roller |
| Positioning accuracy |
0.025° |
| Repeatability |
+/-0.002° |
| Stage height |
40 mm |
| Center of rotation |
72 mm |
| Positioning accuracy of rotatation center |
φ0.05 mm |
| Lost motion |
0.002° |
| Moment rigidity |
0.4sec/N*cm (Yaw), 0.1sec/N*cm (roll) |
| Load capacity |
58.8 N (6 kgf) |
| Weight |
1.6 kg |
| Maximum speed |
16°/s |
| Material / Surface treatment |
Aluminum alloy / White Alumite |

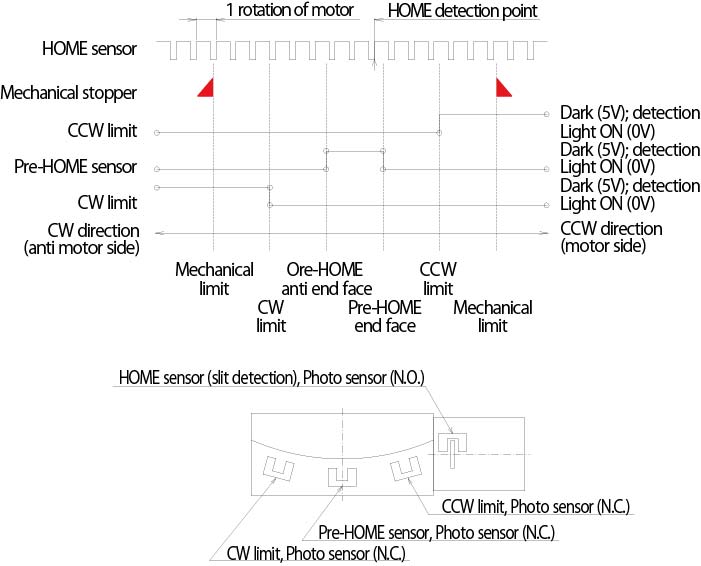

| HOME sensor |
Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable |
| Pre-HOME sensor |
Normally closed contact (Break contact, B contact) operation, Photo sensor
*adjustable range : +/-15° |
| LIMIT sensor |
Normally closed contact (Break contact, B contact) operation, Photo sensor
*adjustable range : +/-15° |

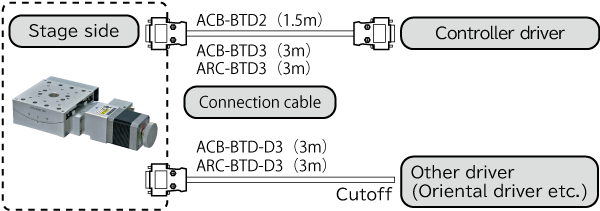

| Compatible cable |
0.75-A type (ACB-STD2, ACB-STD3, ACB-STD-D3, ARC-STD2, ARC-STD-D2, ARC-STD3 or ARC-STD-D3, be sold separately) |
| Standard accessories |
Inspection certificate
Mounting screw : M4 Hexagon socket head cap screws (4 pcs) |
| Supplemental note |
*Dedicated parameter setting for QT-A (Parameter No.4): 14 |
