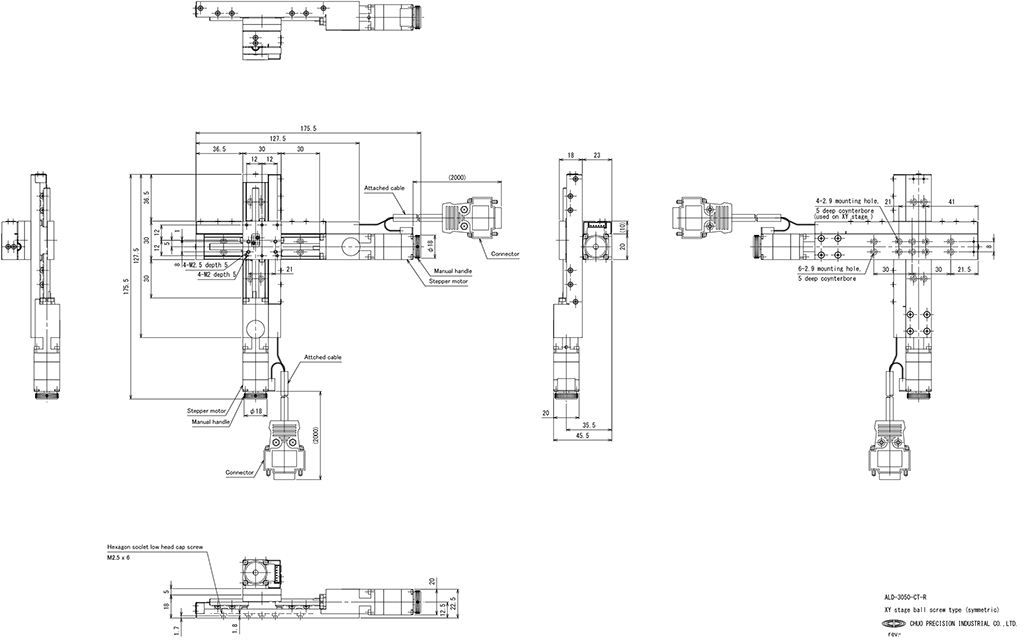

ALD-3050-CT-R

1

XY stage (Symmetric type)

Estimate separately

Direction of travel	XY axis two directions
Travel	+/-25 mm
Table size	30 mm x 30 mm

Product documentation

▲PAGE TOP

Description

Compact motorized stage with 20 mm square 5-phase stepper motor.
A ball way is used for moving guide to achieve a long travel.
There is a 5 mm thick spacer between the two axes.
It is widely used for precise positioning applications such as cameras, sensors, and workpieces.

▲PAGE TOP

Specifications

Direction of travel	XY axis two directions
Travel	+/-25 mm
Table size	30 mm x 30 mm
Motor	Equivalent to PK513PB (5-wire type pentagonal connection 0.35A /phase)
Resolution	0.002 mm
Feed screw	Ball screw
Feed screw lead	1 mm
Guiding method	Ball way
Travel accuracy HV	Straightness (horizontal and vertical) 0.015 mm
Positioning accuracy	0.020 mm
Repeatability	+/-0.001 mm
Lost motion	0.007 mm
XY Perpendicularity	0.010 mm
Moment rigidity	-
Load capacity	14.7 N (1.5 kgf)
Weight	0.55 kg
Maximum speed	16 mm/s (at 8,000 pps)
Material / Surface treatment	Stainless/Low temperature black chrome plating
HOME sensor	-
Pre-HOME sensor	-
LIMIT sensor	Normally closed contact (break contact, B contact) operation, Photo sensor *non-adjustable
Standard accessories	ACB-STT2 (dedicated cable, cable length : 2m) Inspection certificate Mounting screw : M2.5 Hexagon socket low head cap screws (6 pcs)
Supplemental note	*Dedicated parameter setting for QT-A (Parameter No.4): 52
