Plate Beamsplitters

SPBS-S38-700-50

1
Plate beamsplitter （50R/50T）
Estimate separately
Classification Plate beamsplitter （SPBS）
External form D(mm) 25.0×38.0
Design Wavelength DWL 700-1100nm

Product documentation

  • カタログPDF
  • 技術資料
▲PAGE TOP

Description

Plate beamsplitter is an optical window with a semi-transparent mirrored coating to break a beam into two or more separate beams.
▲PAGE TOP

Specifications

Classification Plate beamsplitter （SPBS）
External form D(mm) 25.0×38.0
Externals Tolerance(mm) 0/-0.25
Design Wavelength DWL 700-1100nm
Material N-BK7
Angle of Incidence 45°
Thickness(mm) 3.0±0.25
Clear Aperture(mm) [Outer] ×0.85
Parallelism ≦3′
Surface Accuracy 1λ/25.4mm
Surface quality 60 - 40
Edge Chip Max. 0.25mm
B/Scoat(surface) Rabs Tabs±5％（@900nm） Ravg Tavg±10％（@700-1100nm）
Anti-reflection coating(rear face) Ravg≦1％ Rabs≦2％（@700-1100nm）
▲PAGE TOP

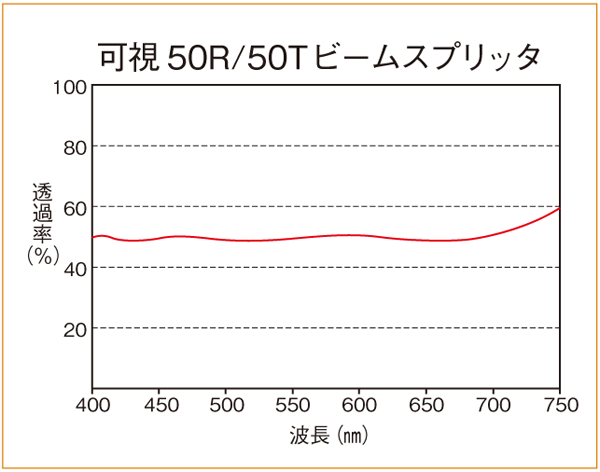

Curve(FOR REFERENCE ONLY)

spectrum/SPBS-VIS50R50T.png
