Auto Collimator

LAC-DP-SA

1
Data processing software for LAC
Estimate separately

Product documentation

Features

LAC-DP-SA, in the LAC-S / LAC-SA, is a data processing software to perform various measurements.
LAC-DP-SA can be extensive data processing capabilities.

  • Straightness (1axis) measurement
  • Straightness (2axis) measurement
  • Flatness measurement
  • Indexing accuracy angle measurement
  • Polygonal mirror measurement
  • Yawing or Pitching measurement (Measurement either)
  • Yawing and Pitching measurement (Simultaneous measurement)

The LAC-DP-SA operating environment is as follows.
Corresponding OS :
Microsoft Windows7 SP1, Microsoft Windows10 Home Version1703, and Pro Version1703 *November 2017
Interface :
RS-232C 1 port, USB 1 port (for HASP keys)
*When connected via a USB hub, a USB extension cable, or the like, normal operation may not occur.


Straightness (2axis) measurement and Flatness measurement Screenshot.

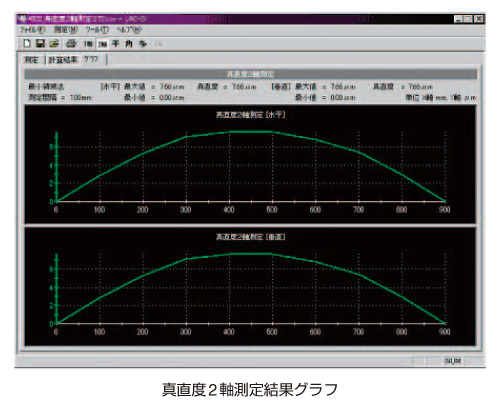

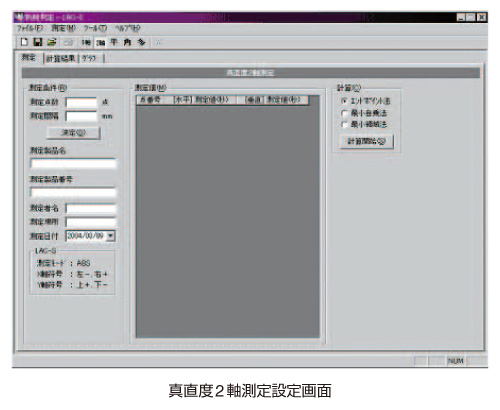

Straightness (2axis) measurement

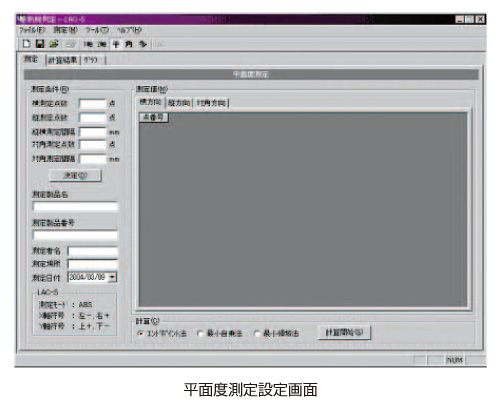

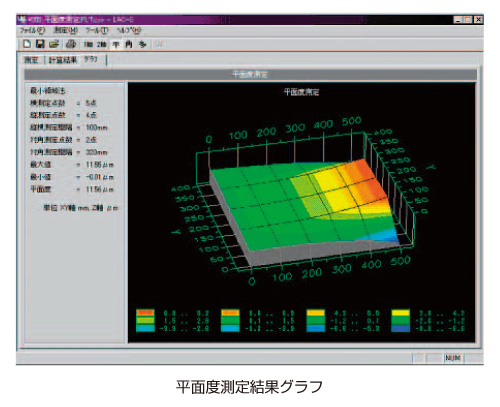

Flatness measurement

*LAC-DP-SA is distributed by Nikon Instech in JAPAN.
