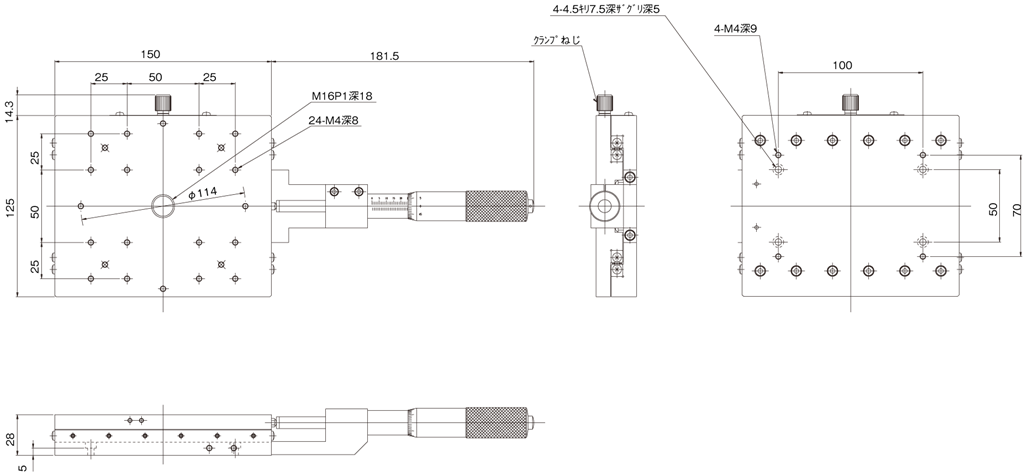

| Direction of travel |
X axis one direction |
| Table size |
125 mm x 150 mm |
| Clamp method |
Clamp plate |
| Mounting position |
Center |
| Transfer mechanism |
MHH1-50TA (Standard micrometer head) |
| Travel |
+/-25 mm |
| Lead of actuator |
0.5 mm |
| Scale interval |
Micrometer head 0.01 mm |
| Minimum resolution |
3 μm |
| Guiding method |
V-groove and cross rollers |
| Travel accuracy HV |
Straightness (horizontal and vertical) 3 μm |
| Travel accuracy YP |
Yawing 15 sec, Pitching 15 sec |
| Moment rigidity |
Yawing rigidity 0.02 sec/N･cm, Pitching rigidity 0.02 sec/N･cm, Rolling rigidity 0.01 sec/N･cm |
| Parallelism |
30 μm |
| Load capacity |
294 N (30 kgf) |
| Weight |
4.9 kg |
| Material / Surface treatment |
Steel/Hard black chrome |
| Standard accessories |
Inspection certificate
Mounting screw : Hexagon socket head cap screw M4, 4 screws |
