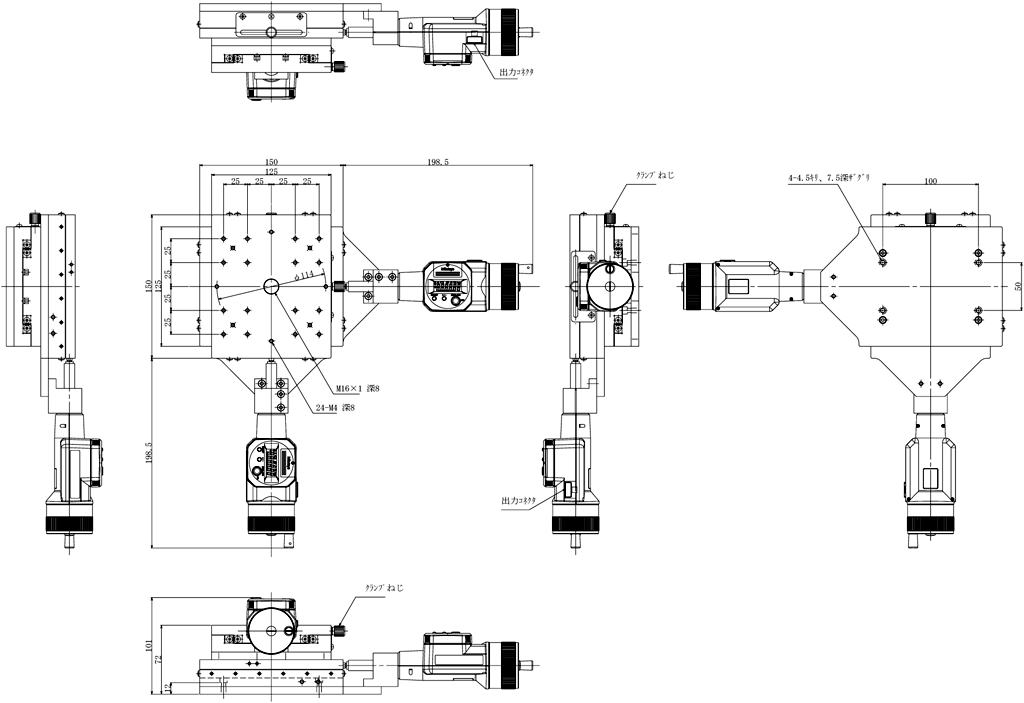

| Direction of travel |
XY axis two directions |
| Table size |
125 mm x 150 mm |
| Clamp method |
Clamp plate |
| Mounting position |
Center |
| Transfer mechanism |
MHD-50MB (Digital display micrometer head) |
| Travel |
+/-25 mm |
| Lead of actuator |
0.5 mm |
| Scale interval |
Digital display 0.001 mm |
| Minimum resolution |
1 μｍ |
| Guiding method |
V-groove and cross rollers |
| Travel accuracy HV |
Straightness (horizontal and vertical) 3 μｍ |
| Travel accuracy YP |
Yawing 15sec, Pitching 15sec |
| Moment rigidity |
Yawing rigidity 0.02 sec/N・cm, Pitching rigidity 0.02 sec/N・cm, Rolling rigidity 0.01 sec/N・cm |
| Parallelism |
60 μｍ |
| XY Perpendicularity |
20 μｍ |
| Load capacity |
245 N (25 kgf) |
| Weight |
10.3 kg |
| Material / Surface treatment |
Steel/Hard black chrome |
| Standard accessories |
Inspection certificate
Mounting screw : Hexagon socket head cap screw M4, 4 screws |
