XY Stages

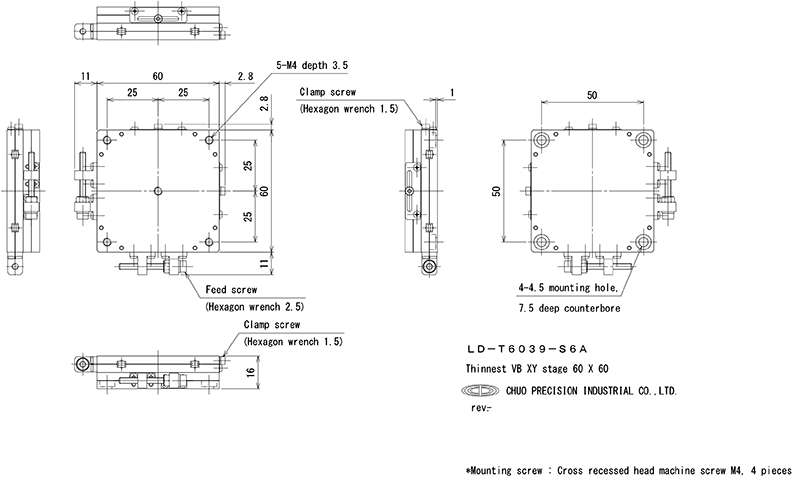

Thinnest VB XY axis stage 60 x 60

Estimate separately

Travel	+/-6.5 mm
Table size	60 mm x 60 mm

This is a new product that uses magnetic adsorption.
A low-price product with a different structure from conventional products.

Direction of travel	XY axis two directions
Table size	60 mm x 60 mm
Clamp method	Clamp plate
Mounting position	Side
Transfer mechanism	Feed screw P=0.5 mm (Hexagon socket head cap screw)
Travel	+/-6.5 mm
Lead of actuator	0.5 mm
Guiding method	V-groove and steel balls
Load capacity	145 N (14.8 kgf)
Weight	0.40 kg
Material / Surface treatment	Stainless steel/Black chromium oxide
Standard accessories	Mounting screw : Cross recessed head machine screw M4, 4 pieces
