XY Stages

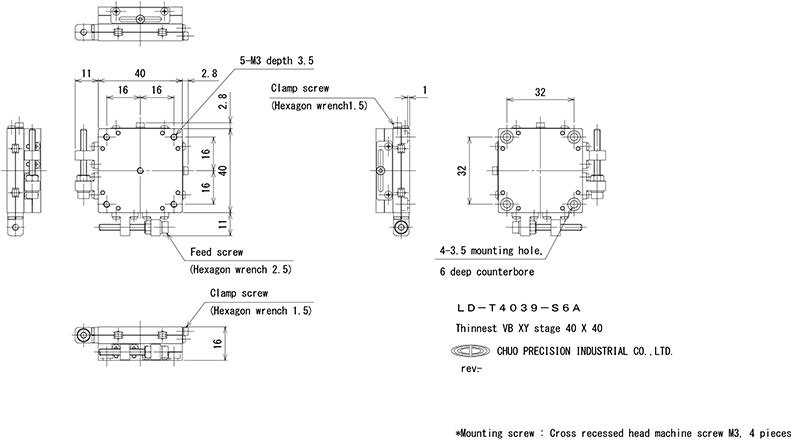

LD-T4039-S6A

0
Thinnest VB XY axis stage 40 x 40
Estimate separately
Travel +/-6.5 mm
Table size 40 mm x 40 mm
YESRoHS対応状況

Product documentation

Description

This is a new product that uses magnetic adsorption.
A low-price product with a different structure from conventional products.

Specifications

Direction of travel XY axis two directions
Table size 40 mm x 40 mm
Clamp method Clamp plate
Mounting position Side
Transfer mechanism Feed screw P=0.5 mm (Hexagon socket head cap screw)
Travel +/-6.5 mm
Lead of actuator 0.5 mm
Guiding method V-groove and steel balls
Load capacity 97 N (9.9 kgf)
Weight 0.18 kg
Material / Surface treatment Stainless steel/Black chromium oxide
Standard accessories Mounting screw : Cross recessed head machine screw M3, 4 pieces

Supplementation
