Z Stages

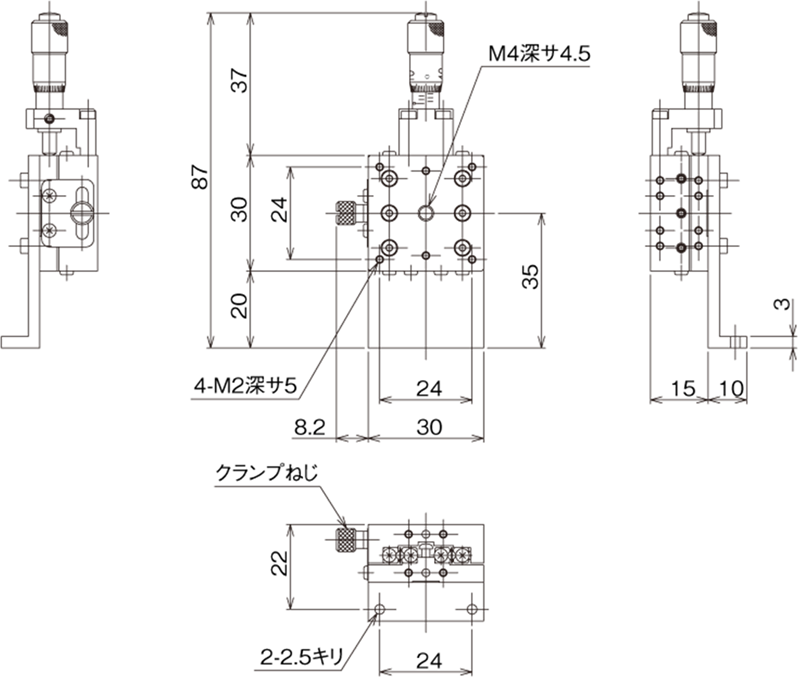

LZ-3047-C1

1
High-grade aluminum Z axis stage 30 x 30 (Standard type)
Estimate separately
Travel +/-3 mm
Table size 30 mm x 30 mm
YESRoHS対応状況

Product documentation

Description

Manual stage by using HG-VCR method for the moving guide and aluminum alloy as main material, achieving both rigidity and lightweight.
There are standard types and symmetrical types, and symmetrical configurations are also possible.
Transfer method is standard micrometer head.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

Specifications

Direction of travel Z axis one direction
Table size 30 mm x 30 mm
Clamp method Clamp plate
Mounting position Center
Transfer mechanism CMH-6.5RA (Standard micrometer head)
Travel +/-3 mm
Lead of actuator 0.5 mm
Scale interval Micrometer head 0.01 mm
Minimum resolution 0.003 mm
Guiding method HG-VCR (V-groove and cross rollers)
Travel accuracy HV Straightness (horizontal and vertical) 0.002 mm
Travel accuracy YP Yawing 20 sec, Pitching 30 sec
Moment rigidity Yawing rigidity 1.00 sec/N・cm, Pitching rigidity 1.00 sec/N・cm, Rolling rigidity 1.00 sec/N・cm
Perpendicularity 0.080 mm
Load capacity 19.6 N (2 kgf)
Weight 0.07 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M2, 2 screws
