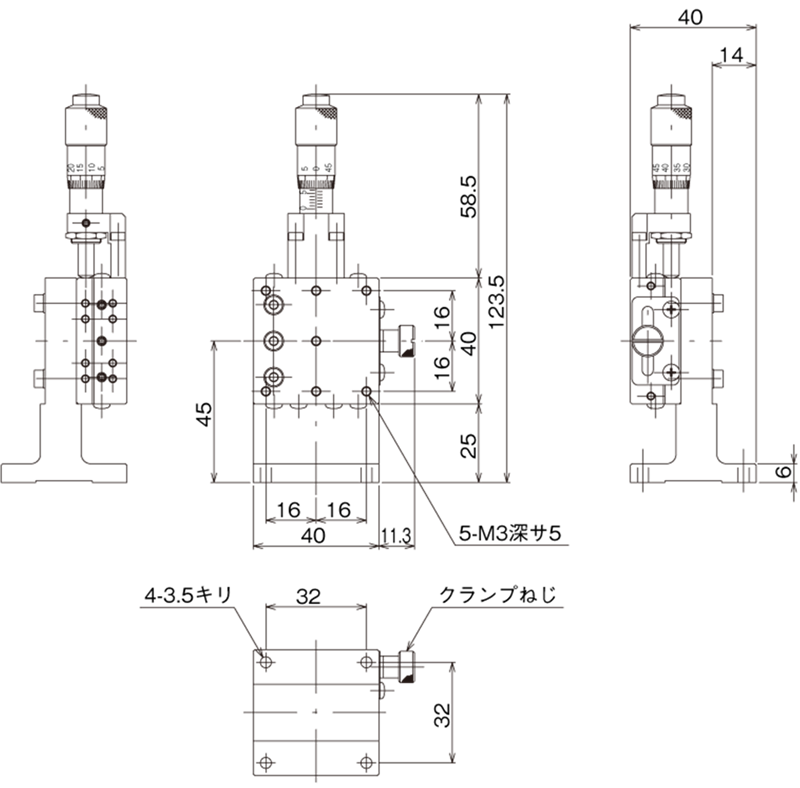

LZ-4042-CR1

1

High-grade Z axis stage 40 x 40 (Symmetric type)

Estimate separately

Travel	+/-6.5 mm
Table size	40 mm x 40 mm

YES

Product documentation

YES

▲PAGE TOP

Description

A high precision and high rigid manual stage by using HG-VCR method for the moving guide.
There are standard types and symmetrical types, and symmetrical configurations are also possible.
Transfer method is standard micrometer head.
Clamp method is plate clamp.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

▲PAGE TOP

Specifications

Direction of travel	Z axis one direction
Table size	40 mm x 40 mm
Clamp method	Clamp plate
Mounting position	Center
Transfer mechanism	CMH-13RM (Standard micrometer head)
Travel	+/-6.5 mm
Lead of actuator	0.5 mm
Scale interval	Micrometer head 10 μm
Minimum resolution	3 μm
Guiding method	HG-VCR (V-groove and cross rollers)
Travel accuracy HV	Straightness (horizontal and vertical) 1 μm
Travel accuracy YP	Yawing 15 sec, Pitching 25 sec
Allowable moment	Yawing 500 N・cm, Pitching 500 N・cm, Rolling 500 N・cm
Moment rigidity	Yawing rigidity 0.04 sec/N・cm, Pitching rigidity 0.04 sec/N・cm, Rolling rigidity 0.02 sec/N・cm
Perpendicularity	65 μm
Load capacity	49 N (5㎏f)
Weight	0.3㎏
Material / Surface treatment	Stainless steel, Aaluminum alloy (Ｚ bracket)/Black chromium oxide, Black Alumite
Standard accessories	Inspection certificate Mounting screw : Hexagon socket head cap screw M3, 4 screws
