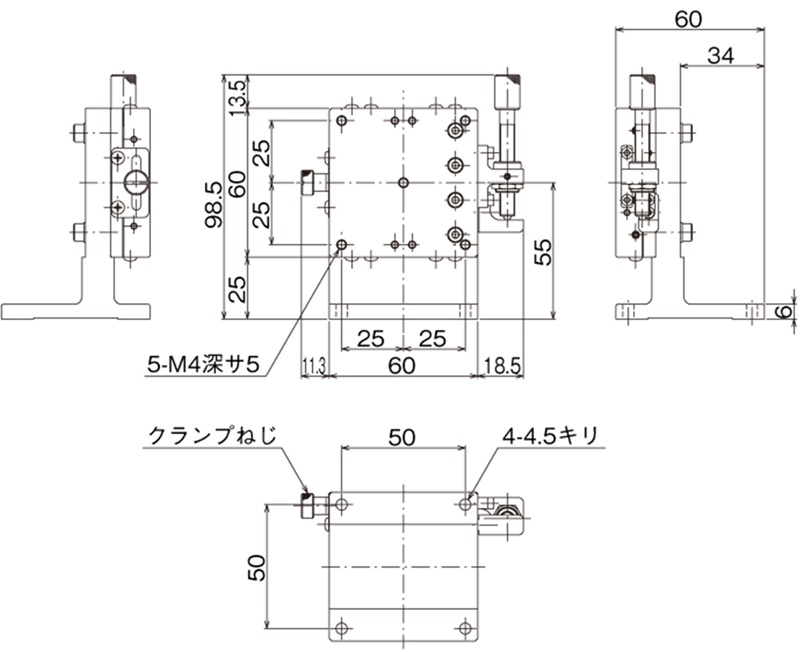

LZ-6042-S6

1

High-grade Z axis stage 60 x 60 (Standard type)

Estimate separately

Travel	+/-6.5 mm
Table size	60 mm x 60 mm

YES

Product documentation

YES

▲PAGE TOP

Description

A high precision and high rigid manual stage by using HG-VCR method for the moving guide.
There are standard types and symmetrical types, and symmetrical configurations are also possible.
Transfer method is feed screw.
Clamp method is plate clamp.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

▲PAGE TOP

Specifications

Direction of travel	Z axis one direction
Table size	60 mm x 60 mm
Clamp method	Clamp plate
Mounting position	Side
Transfer mechanism	Feed screw P=0.5 mm
Travel	+/-6.5 mm
Lead of actuator	0.5 mm
Scale interval	-
Minimum resolution	10 μm
Guiding method	HG-VCR (V-groove and cross rollers)
Travel accuracy HV	Straightness (horizontal and vertical) 1 μm
Travel accuracy YP	Yawing 15 sec, Pitching 25 sec
Allowable moment	Yawing1200 N・cm, Pitching 1200 N・cm, Rolling 1200 N・cm
Moment rigidity	Yawing rigidity 0.04 sec/N・cm, Pitching rigidity 0.04 sec/N・cm, Rolling rigidity 0.02 sec/N・cm
Perpendicularity	65 μm
Load capacity	49 N (5㎏f)
Weight	0.6㎏
Material / Surface treatment	Stainless steel, Aaluminum alloy (Ｚ bracket)/Black chromium oxide, Black Alumite
Standard accessories	Inspection certificate Mounting screw : Hexagon socket head cap screw M4, 4 screws
