Description

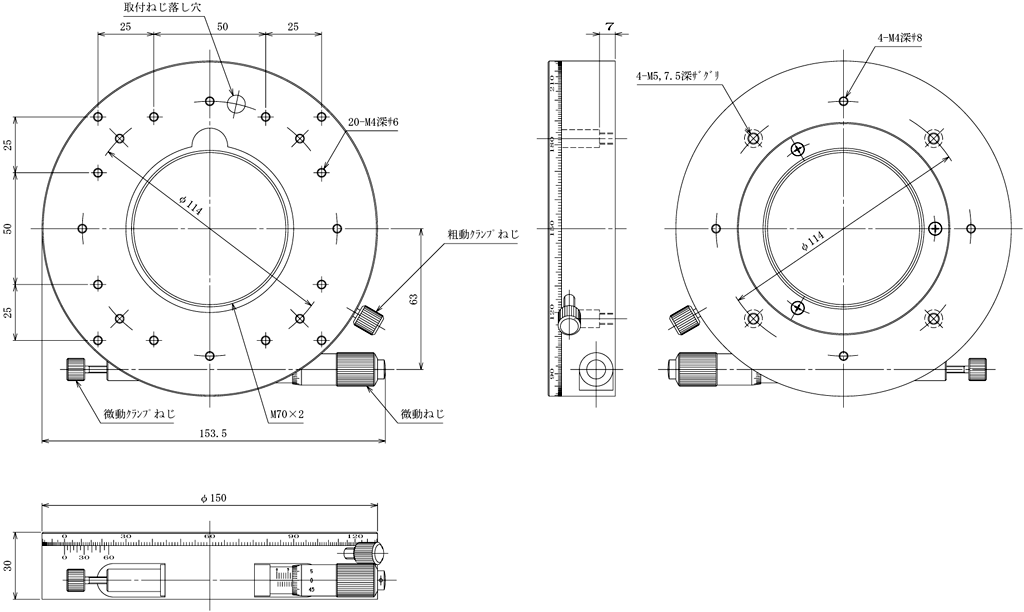

Through hole type rotary (rotation) stage by using a sliding guide for moving guide.
Micrometer head position is standard (facing right).
You can rotate the table 360 ??degrees by hand.
Fine movement is possible with a micrometer head after coarse movement clamping.
By clamping both coarse and fine movement, it can be fixed at any position.
Secure with M4 screws from the pit holes on the table surface. The back side can be fixed with M4 or M5 screws.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.
