Rotary Stages

RS-317

1
Transmission hole type rotary slim stage φ30
Estimate separately
Table size φ30 mm
YESRoHS対応状況

Product documentation

Description

Fine movement rotary (rotation) stage by using a sliding guide for moving guide.
Micrometer head position is standard (facing right).
You can rotate the table 360 ??degrees by hand.
Fine movement is possible with a micrometer head after coarse movement clamping.
By clamping both coarse and fine movement, it can be fixed at any position.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

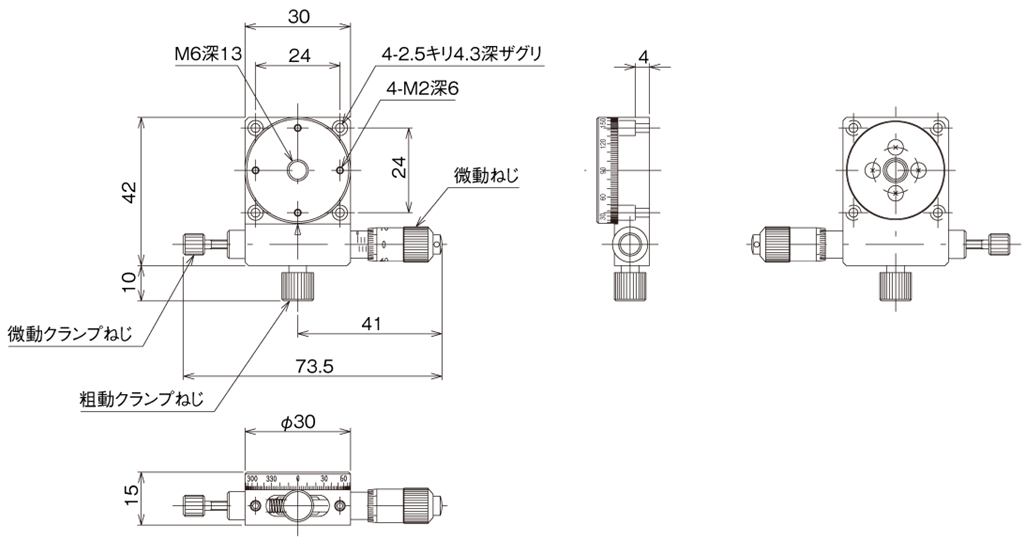

Specifications

Direction of travel Rotation
Table size φ30 mm
Clamp method Complex clamp
Mounting position Standard position
Fine feed system CEH-6.5R (Standard micrometer head)
Travel 360° (coarse), +/-5° (fine)
Lead of actuator Approx. 1.36°
Scale interval Dial reading 2°/Micrometer head 0.01 mm (one division approx. 0.027°)
Minimum resolution 30"
Guiding method Sliding
Parallelism 0.03 mm
Circularity 0.02 mm
Deflection 0.02 mm
Load capacity 9.8 N (1 kgf)
Weight 0.1 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M2, 4 screws
