TS-R911

1
Goniometer stage 90 x 90
Estimate separately
Travel +/- 4°
Table size 90 mm x 90 mm
YESRoHS対応状況

Product documentation

Description

One-axis tilt stage.
Our unique complex coupling mechanism enables fine and extremely smooth movements.
Dovetail groove (D-T method) is used for the moving guide.
It is widely used for positioning applications such as cameras and sensors.

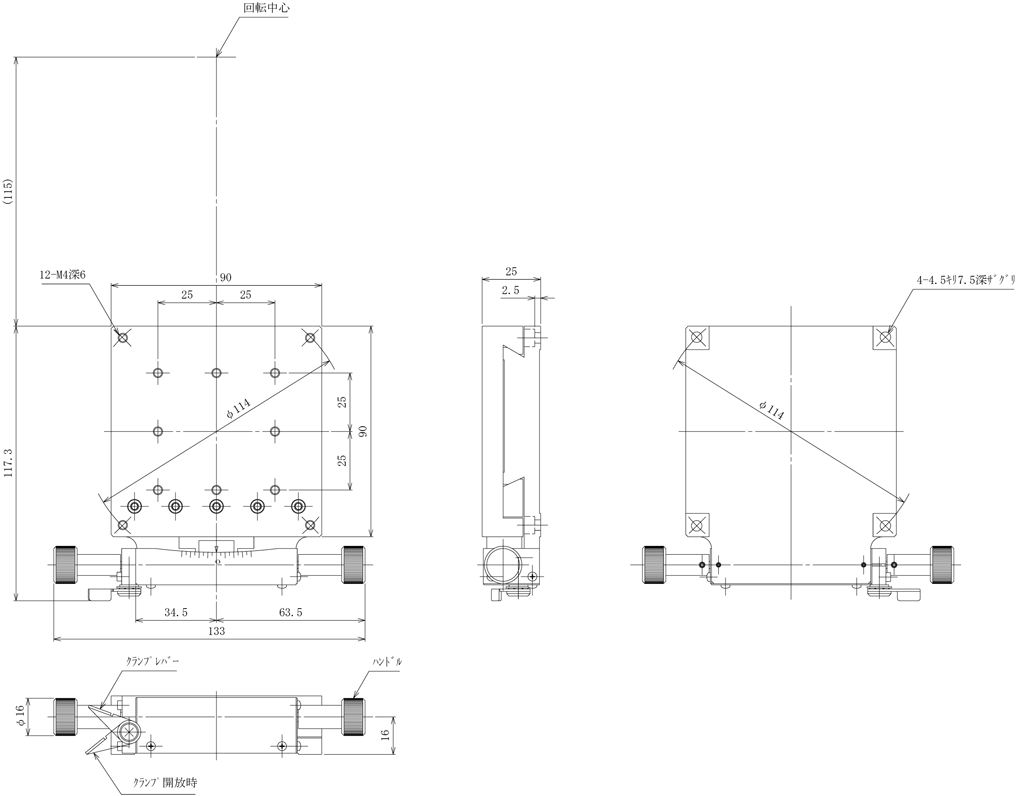

Specifications

Direction of travel Tilt, one axis
Table size 90 mm x 90 mm
Clamp method Lever type
Transfer mechanism Precision screw, Composite coupling mechanism swivel
Travel +/- 4°
Lead of actuator Approx. 7' 55"
Scale interval Scale 30'
Guiding method Dovetail
Center of rotation 160 mm
Positioning accuracy of rotatation center φ0.1 mm
Load capacity 39.2 N (4 kgf)
Weight 1.6 kg
Material / Surface treatment Blass/Black hard chrome
Standard accessories Mounting screw : Hexagon socket head cap screw M4, 4 screws
