XYZ Stages

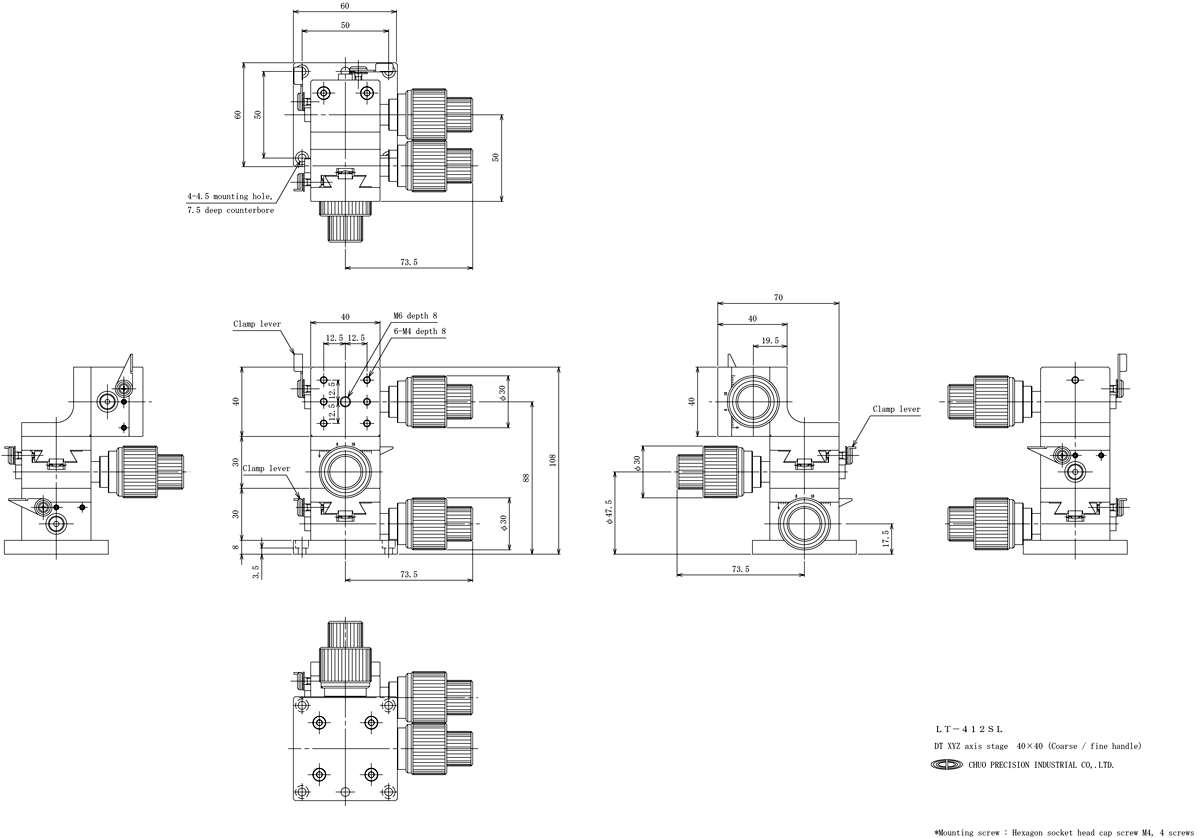

LT-412SL

1
DT XYZ axis stage 40 x 40 (Coarse/fine handle)
Estimate separately
Travel XY axis +/-10 mm, Z axis 10 mm
Table size 40 mm x 40 mm
YESRoHS対応状況

Product documentation

Description

Manual stage by using a dovetail groove (D-T method) for the moving guide.
A rack and pinion is used for the transfer method to achieve a long travel.
It is widely used for positioning applications such as cameras and sensors.
It can be fixed in any position using a lever type clamp with high holding power.
LT-412SL is a short Z bracket model.

Specifications

Direction of travel XYZ axis third direction
Table size 40 mm x 40 mm
Clamp method Lever type
Mounting position Coarse / fine handle
Transfer mechanism Rack and Pinion
Travel XY axis +/-10 mm, Z axis 10 mm
Lead of actuator Coarse approx. 25.5 mm, fine approx. 3.3 mm
Scale interval Vernier reading 0.1 mm
Minimum resolution 0.1 mm
Guiding method Dovetail
Travel accuracy Straightness 0.03 mm
Load capacity 19.6 N (2 kgf)
Weight 0.85 kg
Material / Surface treatment Aluminum alloy/Black Alumite
