XYZ Rotary Stages

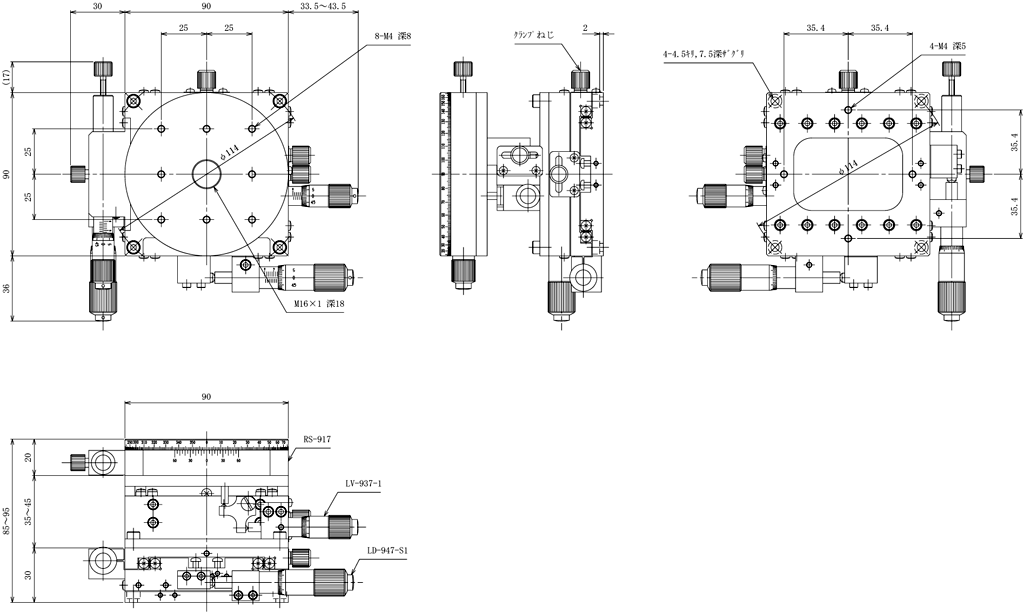

TR-907-S1

1
XYZ-axis Rotary slim stag φ90
Estimate separately
Travel XY axis +/-7.5 mm, Z axis 0~10 mm, Rotary axis coarse 360°fine +/-5°
Table size φ90 mm
YESRoHS対応状況

Product documentation

Description

A thin and light weight stage by using a V-groove and cross rollers (V-CR method) for moving guide.
Micrometer head position is side of the table.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

Specifications

Direction of travel XYZ, three axis and rotation
Table size φ90 mm
Clamp method XYZ axis clamp plate, rotary axis complex clamp
Mounting position XY axis side
Transfer mechanism XY axis CMH-15F, Z axis CMH-13FM, Rotary axis CEH-13R (each axis standard micrometer head)
Travel XY axis +/-7.5 mm, Z axis 0~10 mm, Rotary axis coarse 360°fine +/-5°
Lead of actuator XYZ axis 0.5 mm, Rotary axis approx. 0.50°
Scale interval XYZ axis  Micrometer head0.01mm,rotaryaxis Vernier reading5′/Micrometer head0.01mm(1 division approx0.010°)
Minimum resolution XYZ axis 0.003 mm
Guiding method XY axis V-groove and cross rollers, Z axis HG-VCR (V-groove and cross rollers), Rotary axis sliding guide
Travel accuracy Straightness XY axis 0.003 mm, straightness Z axis 0.008 mm
Circularity 0.04 mm, deflection 0.02 mm
Load capacity 29.4 N (3 kgf)
Weight 1.75 kg
Material / Surface treatment Aluminum alloy/Black Alumite
