Absorption Plates

ZP-1A

1
Vacuum pumps(With switch)
Estimate separately
Classification AdsorptionVacuum pumps

Product documentation

Description

It is a combination of a small vacuum pump and a suction changeover switch.
Adsorption can be turned on and off without using the power switch of the vacuum pump.
A suction changeover switch and one air hose (outer diameter φ6 mm, inner diameter φ4 mm) are included.

Specifications

Classification AdsorptionVacuum pumps
Ultimate vacuum -33.3kPa(-250mmHg)
Discharge air content 6L/min
Power supply AC100V 50/60Hz 15W
Power cable length 2.5m(Cab tire cord with plug)

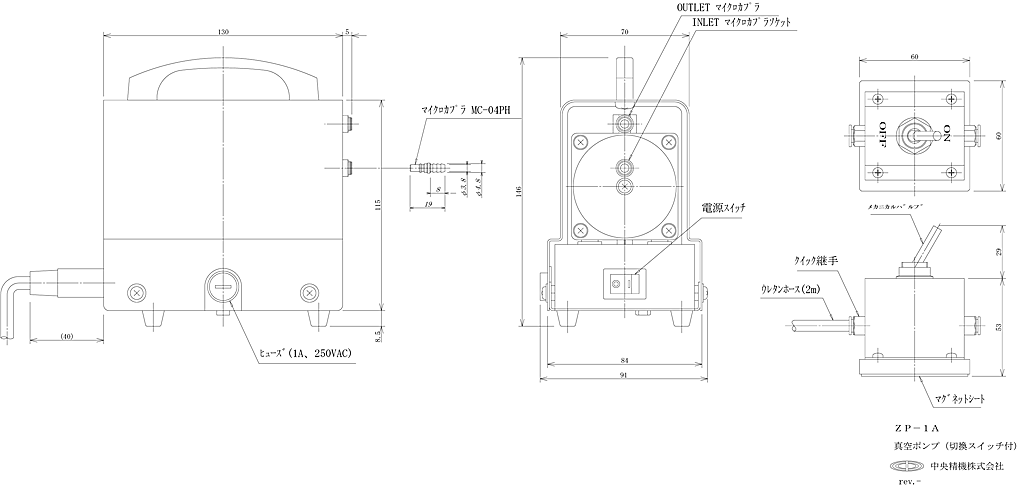

Outside dimension(mm) W91mm×D135mm×H146mm(Vacuum pump only)
Weight 1.5kg(Vacuum pumps)
Supplemental note Connect the ON side of the suction changeover switch to the vacuum pump.

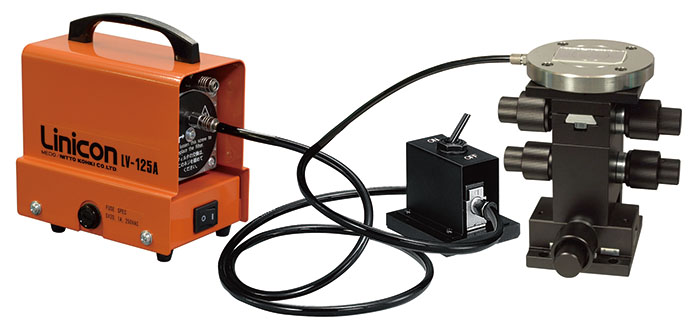

Example of use
