Absorption Plates

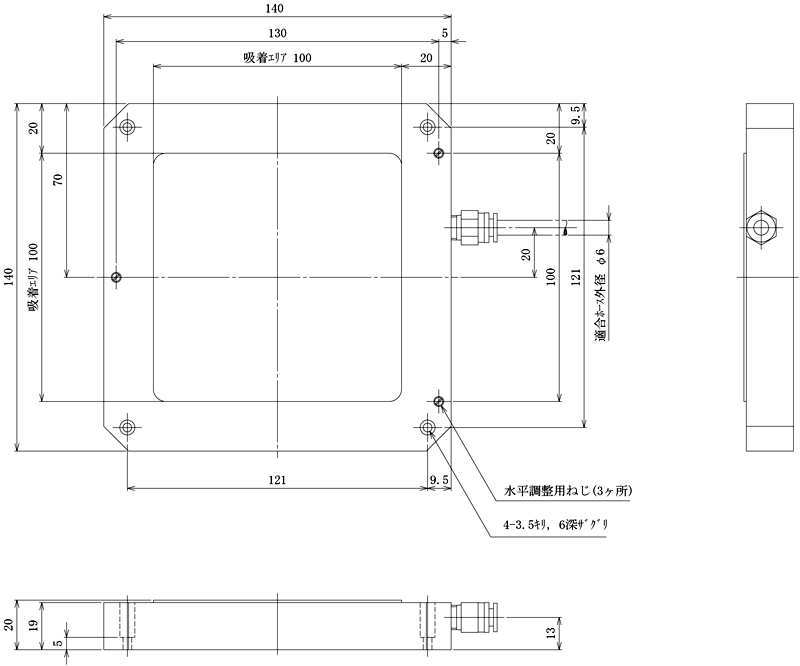

VA-MSS-100C

1
Adsorption plate
Estimate separately
Classification Porous ceramics Adsorption plate
Material / Surface treatment Porous ceramics、aluminum alloy/Black Anodize
YESRoHS対応状況

Product documentation

Description

The adoption of ceramic sintering method, there is no worry of dust from the inside of porous ceramics, does not pollute the environment.
We will generate a uniform force over the entire surface adsorption surface adsorption. Therefore, it is for the retention of work work a thin vacuum chuck and a hole opens weak, such as films.
Also produced a large platen size, specific gravity of porous ceramics is smaller than the aluminum (specific gravity: 1.6 to 1.8), and so lightweight, you also help to reduce the weight of equipment, etc..

Specifications

Classification Porous ceramics Adsorption plate
Flatness 0.005mm
Adaptive product For MSS-100C
Weight 1.0kg
Material / Surface treatment Porous ceramics、aluminum alloy/Black Anodize
Supplemental note ※ This product is made to order. The photograph is VA-MSS-150C

Example of use
