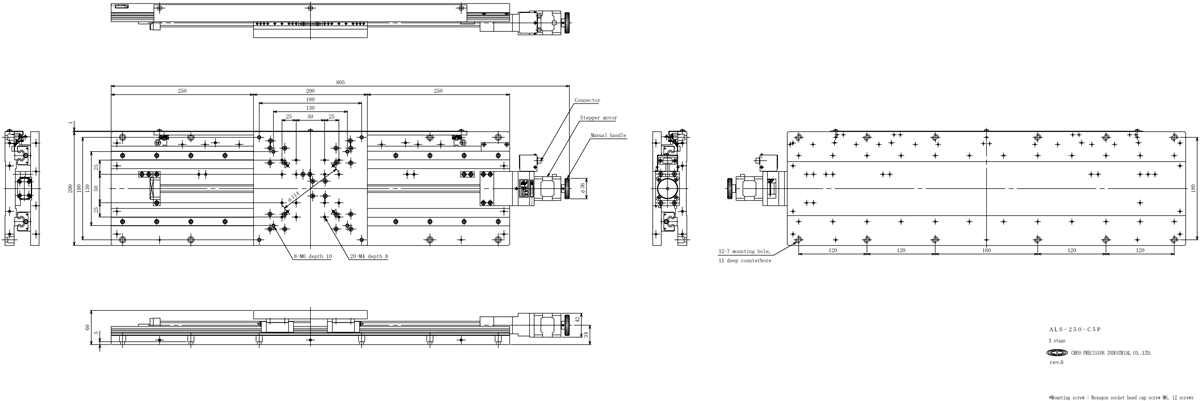

| Direction of travel |
X axis one direction |
| Travel |
+/-250 mm |
| Table size |
200 mm x 200 mm |
| Motor |
Equivalent to PK545NBW (5-wire type pentagonal connection 0.75A/phase) |
| Resolution |
10 μm |
| Feed screw |
Ball screw |
| Feed screw lead |
5 mm |
| Guiding method |
Ball way |
| Travel accuracy HV |
Straightness (horizontal and vertical) 25 μm |
| Travel accuracy YP |
Yawing 35sec, Pitching 70sec |
| Positioning accuracy |
40 μm |
| Repeatability |
+/-2 μm |
| Lost motion |
5 μm |
| Moment rigidity |
0.02sec/N*cm (Yaw), 0.02sec/N*cm (pitch), 0.02sec/N*cm (roll) |
| Load capacity |
490 N (50 kgf) |
| Weight |
13 kg |
| Maximum speed |
50 mm/s (at 5,000 pps) |
| Material / Surface treatment |
Aluminum alloy/White alumite |
| HOME sensor |
Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable |
| Pre-HOME sensor |
Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : +/-100mm |
| LIMIT sensor |
Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : +/-150 to +/-250mm |
| Compatible cable |
0.75-A type (ACB-BTD2, ACB-BTD3, ACB-BTD-D3, ARC-BTD3 or ARC-BTD-D3, be sold separately) |
| Standard accessories |
Inspection certificate
Mounting screw : M6 Hexagon socket head cap screws (12 pcs) |
Dedicated parameter setting
(Parameter No.4) |
14 |
