X Stages

ALS-3050-CT

1
X stage
Estimate separately
Direction of travel X axis one direction
Travel +/-25 mm
Table size 30 mm x 30 mm

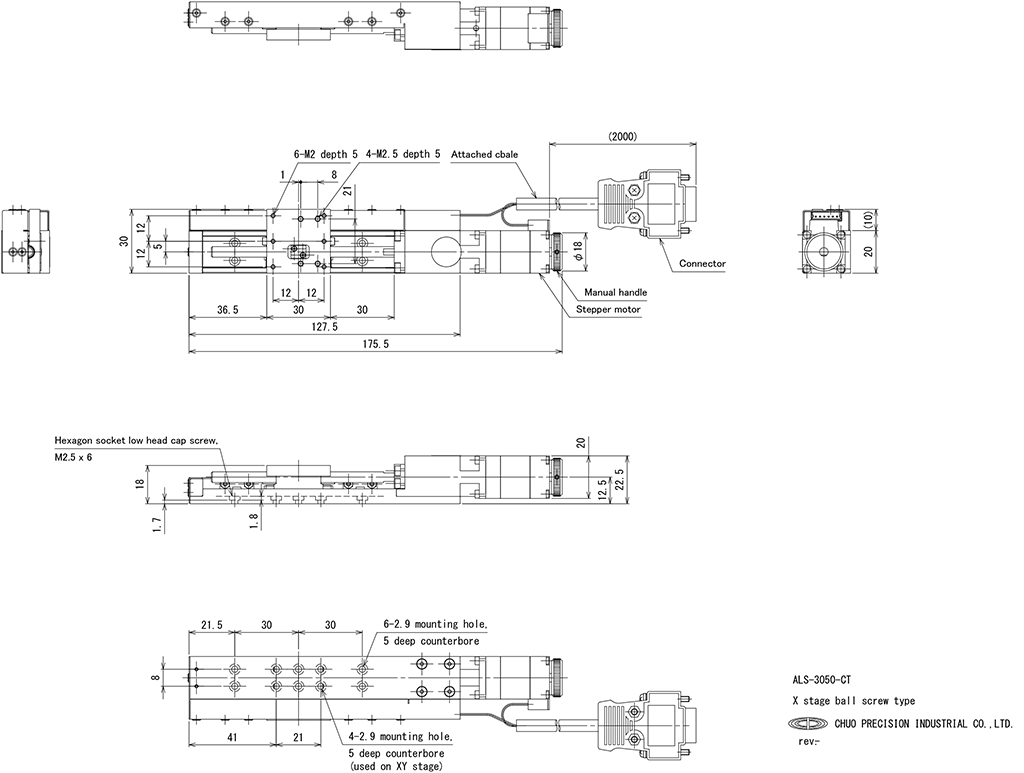

ALS-3050-CT

Product documentation

  • カタログPDF
  • 図面PDF
  • 図面DXF
  • 図面3D STEP
  • 図面3D PARASOLID
  • 取説PDF
  • 技術資料
▲PAGE TOP

Description

Compact motorized stage with 20 mm square 5-phase stepper motor.
A ball way is used for moving guide to achieve a long travel.
It is widely used for precise positioning applications such as cameras, sensors, and workpieces.
▲PAGE TOP

Specifications

Direction of travel X axis one direction
Travel +/-25 mm
Table size 30 mm x 30 mm
Motor Equivalent to PK513PB (5-wire type pentagonal connection 0.35A/phase)
Resolution 0.002 mm
Feed screw Ball screw
Feed screw lead 1 mm
Guiding method Ball way
Travel accuracy HV Straightness (horizontal and vertical) 0.015 mm
Travel accuracy YP -
Positioning accuracy 0.020 mm
Repeatability +/-0.001 mm
Lost motion 0.007 mm
Load capacity 19.6 N (2 kgf)
Weight 0.27 kg
Maximum speed 16 mm/s (at 8,000 pps)
Material / Surface treatment Stainless/Low temperature black chrome plating
HOME sensor -
Pre-HOME sensor -
LIMIT sensor Normally closed contact (break contact, B contact) operation, Photo sensor
*non-adjustable
Standard accessories ACB-STT2 (dedicated cable, cable length : 2m)
Inspection certificate
Mounting screw : M2.5 Hexagon socket low head cap screws (6 pcs)
Supplemental note *Dedicated parameter setting for QT-A (Parameter No.4): 52
▲PAGE TOP

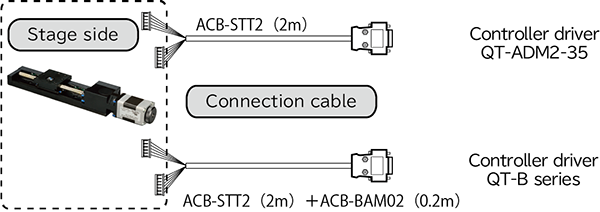

Connection method - Cable, Controller and Driver -

Operating principle of the Sensor and Timing Chart

▲PAGE TOP

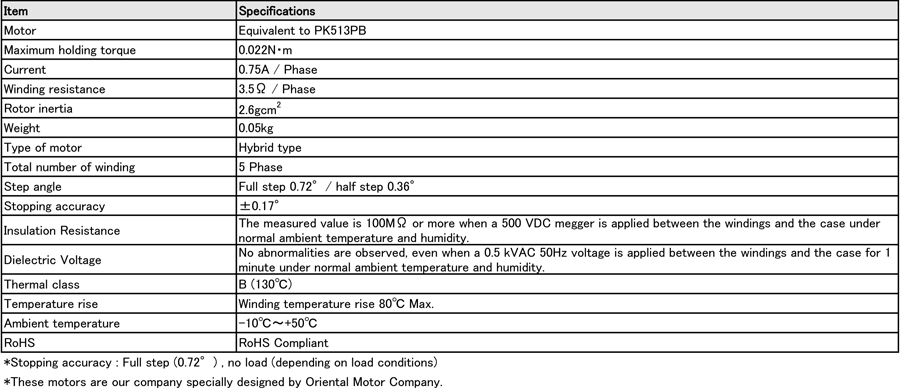

Motor specifications

▲PAGE TOP
