| Number of controlled axes |
2 axis |
| Type |
Controller Options |
| Input power supply |
QT-A Series supply from the main body controller to meet |
| Ambient Temperature and humidity |
10～40℃/20～80%（non-condensing） |

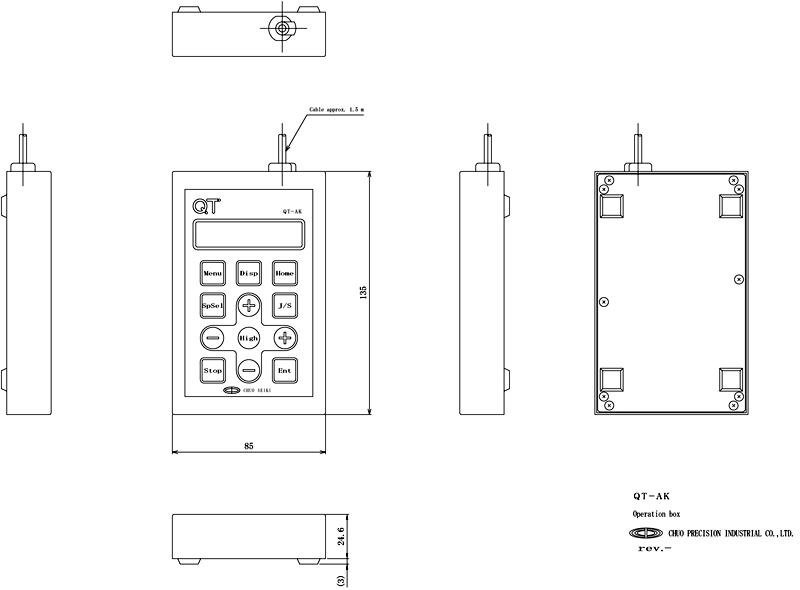

| Outside dimension |
W85mm×D135mm×H25mm（Excluding protrusions） |
| Weight |
0.6kg |
| Display |
Reflective liquid crystal |
| Function switch |
Key switch |
| Function |
Jog / absolute / step, move a step
homing, switching the display unit, a communication test, speed selection table |
| Cable length |
approx1.5m |
| Applicable models |
QT-BDL1, QT-BMM2, QT-BMH2, QT-BMM3, QT-ADL1, QT-ADL1-35, QT-ADM2, QT-ADM2-35, QT-AMH2, QT-AMH2-35 |
