| Number of controlled axes |
2 axis |
| Type |
Controller Options |
| Input power supply |
QT-A Series supply from the main body controller |
| Ambient Temperature and humidity |
10～40℃/20～80%（non-condensing） |
| Outside dimension |

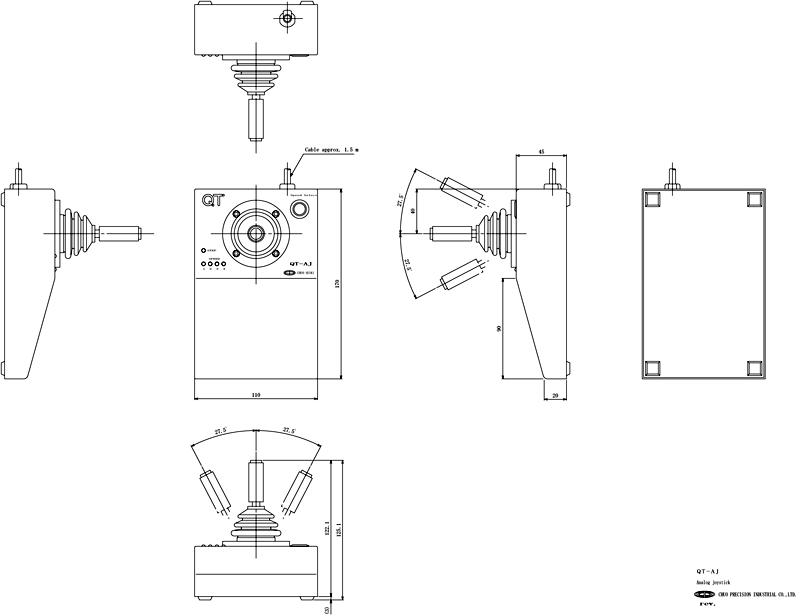

W110mm×D170mm×H45mm（Excluding protrusions） |
| Weight |
0.9kg |
| Display |
Joy stick (jog feed) |
| Function |
Jog feed speed controoled by inclined analog of joy stick, one step movement, step movement, switch between Jog and Step Movement Mode, speed table selection |
| Cable length |
approx1.5m |
| Applicable models |
QT-BMM2, QT-BMH2, QT-BMM3, QT-ADM2, QT-ADM2-35,QT-AMH2, QT-AMH2-35, QT-ADM3, QT-ADM3-35, QT-AMM3 |
