| Type |
Controller Options |
| External power supply voltage range |
DC5～24V |
| Connection condition of external power supply |
(It may be damaged and all of these conditions are not met) that there is no such surge in less than 400mVp-p: 24V +5% within a maximum current capacity: more than 1A, the allowable ripple voltage |
| Ambient Temperature and humidity |
10～40℃/20～80％（non-condensing） |
| Outside dimension |

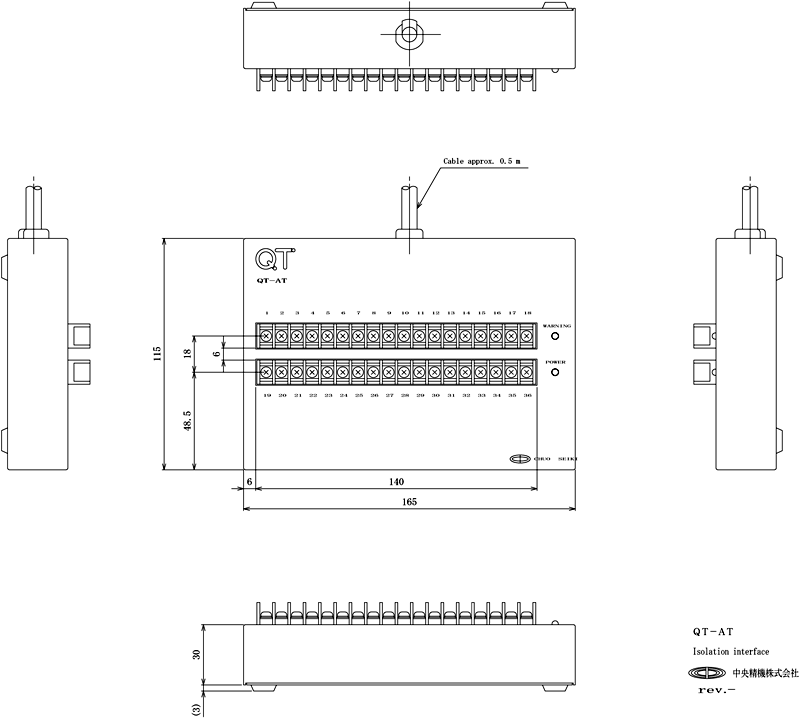

W165mm×D115mm×H30mm（Excluding protrusions） |
| Weight |
0.7kg |
| Maximum input signal voltage |
(External power supply voltage (when the 5V, 5V also will be up to the same voltage as the input signal voltage external power supply voltage, however) DC24V |
| Maximum output signal voltage |
DC24V |
| Maximum output signal current |
50mA |
| Signal input circuit configuration |
Photocoupler |
| Signal output circuit configuration |
Open collector sink |
| Insulation from controller |
Insulated by photocoupler |
| External input |
General-purpose input 4 points, 4 points program selection input CH, driving pulse input, start input moves, enter the start / stop program |
| External output |
4-point general-purpose output, the output drive pulse, the output / stop move, any step pulse output, output / exit program operation |
| Applicable models |
QT-BMM2, QT-BMH2, QT-BMM3, QT-ADM2, QT-ADM2-35, QT-AMH2A, QT-AMH2A-35, QT-ADM3, QT-ADM3-35, QT-AMM3 |
