Mirror Holders

MHA-12.5

1
Kinematic circular mirror holder
Estimate separately
Classification Kinematic circular mirror holder
Shape conforming element φ12.5mm,φ12.7mm(0.5″)
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

This is two control screw kinematic mirror holder for circular mirror.
▲PAGE TOP

Specifications

Classification Kinematic circular mirror holder
Shape conforming element φ12.5mm,φ12.7mm(0.5″)
Thickness conforming element 0 to 2mm
The tilt screw Resource M6P0.25
Adjustable range ±6°
Mounting shaft(mm) 12mm diameter, 60mm length
Weight 0.13kg
Supplemental note ※Three screw version is available.
▲PAGE TOP

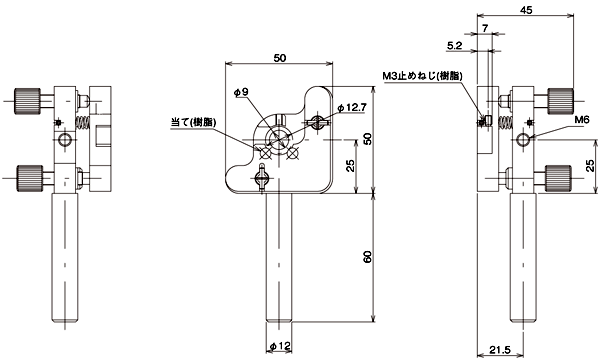

Specification drawings(or pictures)
