MHA-50
1
Kinematic circular mirror holder
Estimate separately
Classification
Kinematic circular mirror holder
Shape conforming element
φ50mm,φ50.8mm(2″)
YES
Product documentation
YES
▲PAGE TOP
Description
This is two control screw kinematic mirror holder for circular mirror.
▲PAGE TOP
Specifications
Classification
Kinematic circular mirror holder
Shape conforming element
φ50mm,φ50.8mm(2″)
Thickness conforming element
0 to 2mm
The tilt screw Resource
M6P0.25
Adjustable range
±4°
Mounting shaft(mm)
12mm diameter, 60mm length
Weight
0.17kg
Supplemental note
※Three screw version is available.
▲PAGE TOP

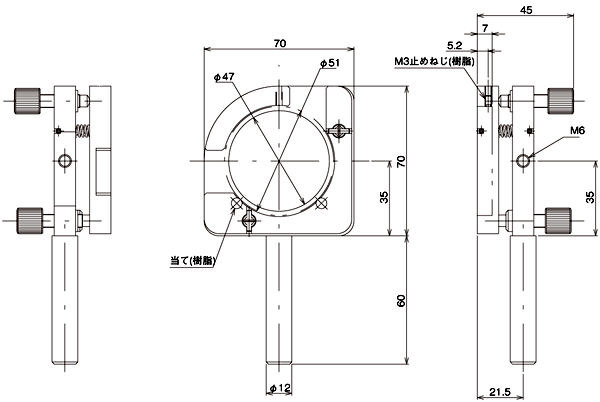

Specification drawings(or pictures)
