Mirror Holders

MHS-30

1
Kinematic mirror holder (30×30, shaft type)
Estimate separately
Classification Kinematic mirror holder
Shape conforming element Maximum 30mm×30mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

This is two control screw kinematic mirror holder for circular or rectangle (suquare) mirror. Mirror is pasted on holder surface.
▲PAGE TOP

Specifications

Classification Kinematic mirror holder
Shape conforming element Maximum 30mm×30mm
The tilt screw Resource M6P0.25
Adjustable range ±5°
Mounting shaft(mm) 8mm diameter, 60mm length
Weight 0.06kg
▲PAGE TOP

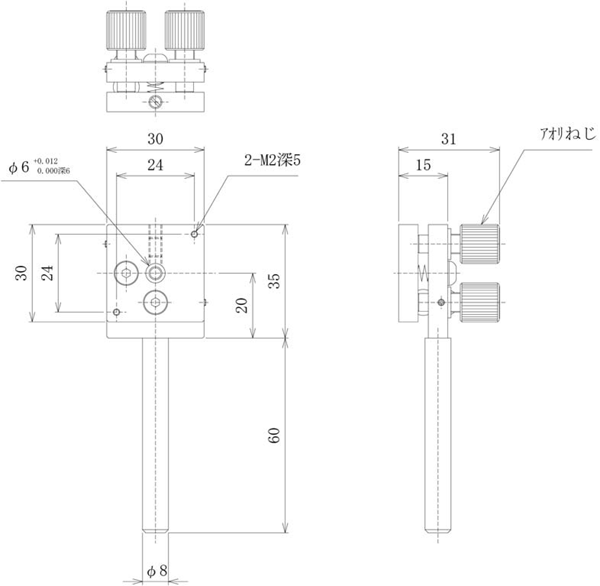

Specification drawings(or pictures)
