Camera Holder

HC-N

0
N type Camera holder
Estimate separately
Specification 1/4 inch screw thread and 3-axis adjustable camera holder
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

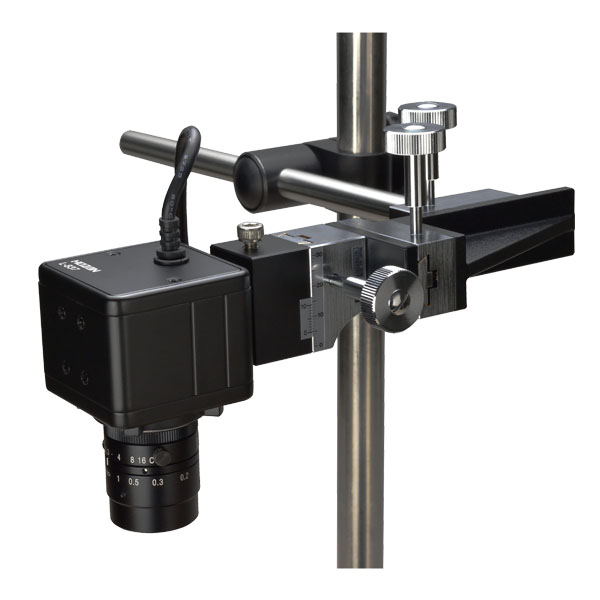

HC-N is a camera holder with 1/4 inch screw thread for fixing industrial cameras and surveillance cameras.
Use by fixing the φ12 shaft part.
Adjustable range vertical 20mm, horizontal 30mm and 55mm.
▲PAGE TOP

Specifications

Camera screw 1/4 (1/4 inch)
Specification 1/4 inch screw thread and 3-axis adjustable camera holder
▲PAGE TOP

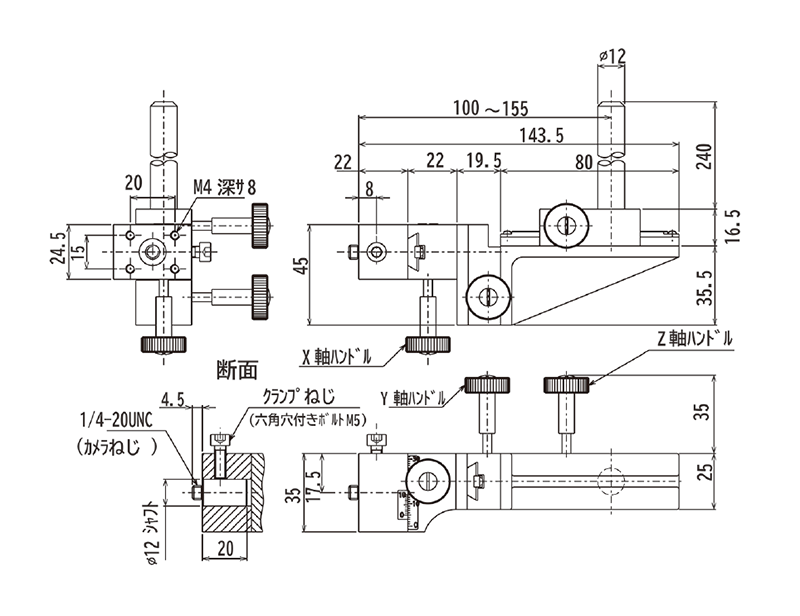

Specification drawings(or pictures)
