Stand

ES-8-20

1
Stand φ8 L=20
Estimate separately
Diameter of the shaft fit φ8mm
YESRoHS対応状況

Product documentation

Description

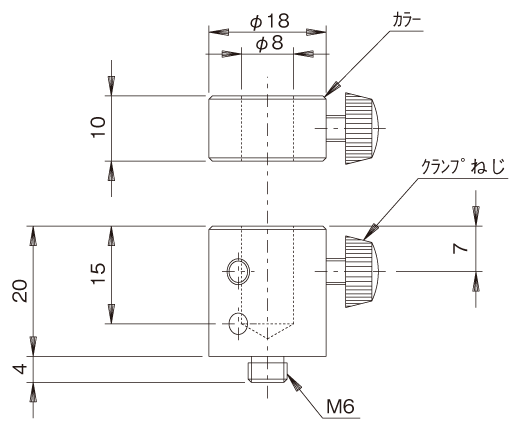

This is a stand for 8mm diameter (shaft or pole). It is equipped with three clamp screw holes and can be clamped any clamp screw. Collar is adapted.

Specifications

Diameter of the shaft fit φ8mm
Height 20mm
Number of clamp screws 2 (apply from June 1, 2018)
Screws on the bottom M6
Weight 0.01kg
