Eye-piece

OC-10-9

1
Eyepiece 10X with crossed micrometer4 reticle
Estimate separately
Magnification 10x
YESRoHS対応状況

Product documentation

Description

OC type is a eypiece for the Tool Scope.

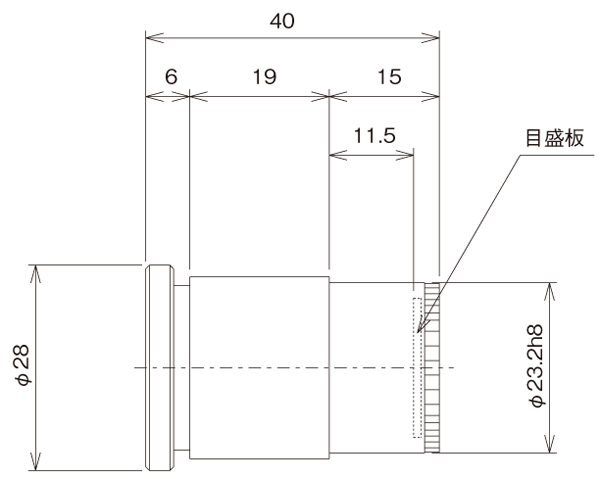

The sleeve to the microscopu tube is φ23.2h8 (JIS B7143).
We will assemble the reticle before shipping. We can also manufacture special reticle (estimate separately).
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.

Specifications

Magnification 10x
Field number 18 mm

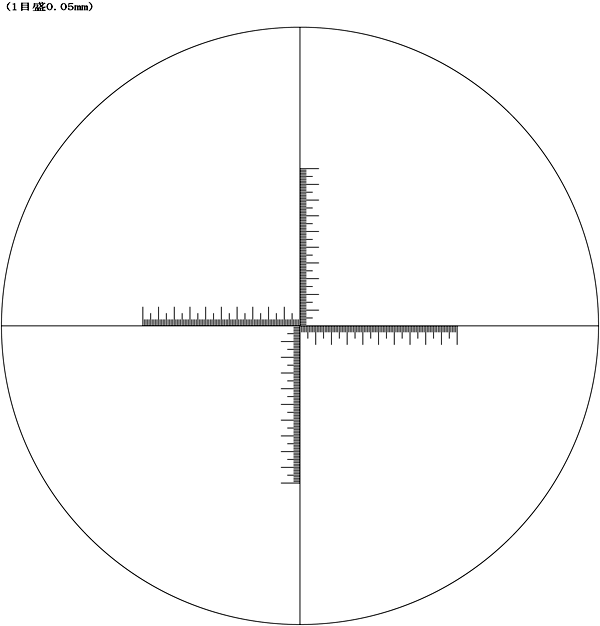

Type of reticle Crossed micrometer 4 (0.05 mm/1 div.)

Reticle
