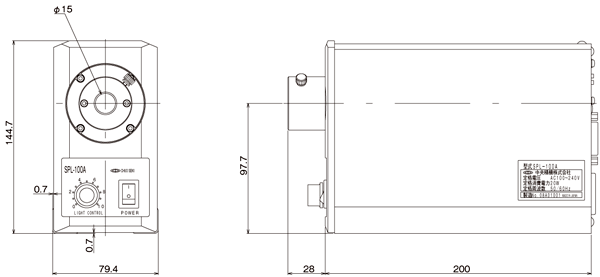

SPL-100A

1

LED Illuminator

Estimate separately

Light source	White color LED

YES

Product documentation

YES

▲PAGE TOP

Description

SPL-100A is a illuminator source and power supply for light guide lighting.
The light source is LED.
It significantly reduces power consumption, has a long service life, and significantly reduces downtime during maintenance.

▲PAGE TOP

Specifications

Illuminance	45,000 Lx
Color temperature	6,500 K
Avarage life time	30,000 hours
Function	Continuous dimming (at front panel volume)
Applicable models	LGG-1000SF
Light source	White color LED
Power supply	AC100 to 240V +/-10%, 50/60Hz, Power consumption 18W
Weight	1.8 kg （without cable）
Ambient temperature/humidity	0 to 40℃ /20 to 80％ RH (no condensation), maximum operating altitude 2000m (indoor use)
Supplemental note	Illuminance value is to be used only as a reference, 50mm distance of light guide (LGG-1000SF) output. Avarage life time is depending on the usage environment temperature. Not a guaranteed value.
