Sensor Operational Logic and Timing Chart

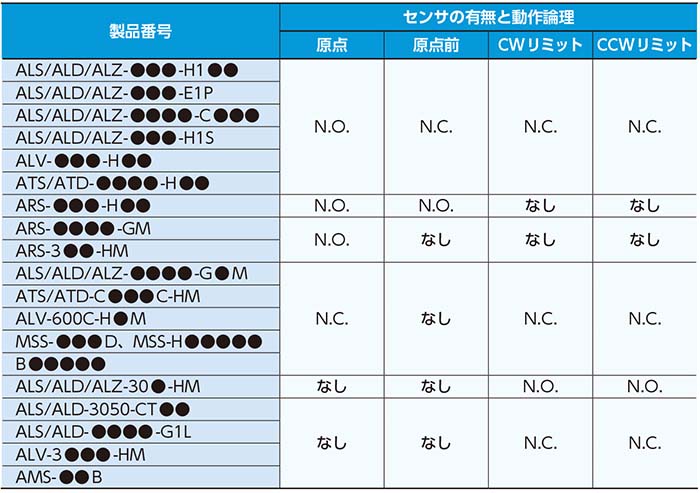

Our motorized stages can have varied operational logic depending on the presence of Home / Pre-home / Limit sensors. The various classification can be shown below.

N.O.: Normally open contact (Make contact, A contact) operation.
N.C.: Normally closed contact (Break contact, B contact) operation.
Please configure the controller settings to N.O if there is no sensor.
For more information about the controller driver settings, please refer to the instruction manuals for each product.

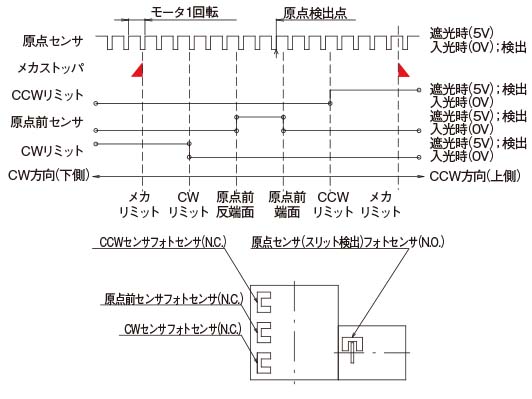

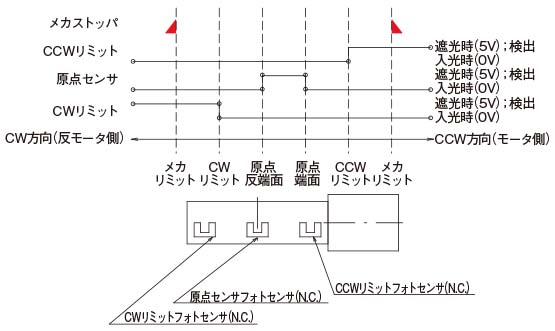

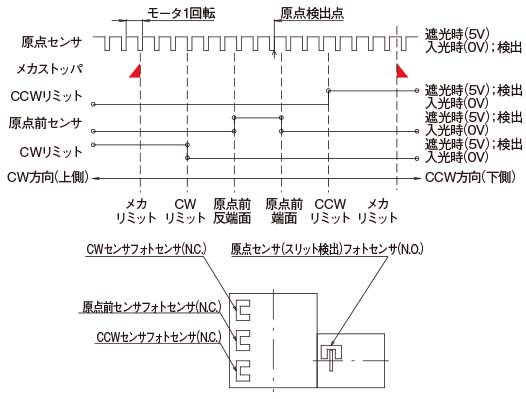

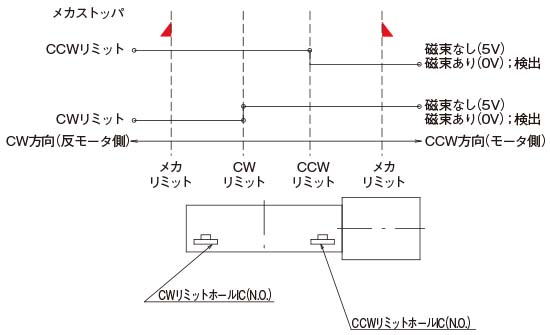

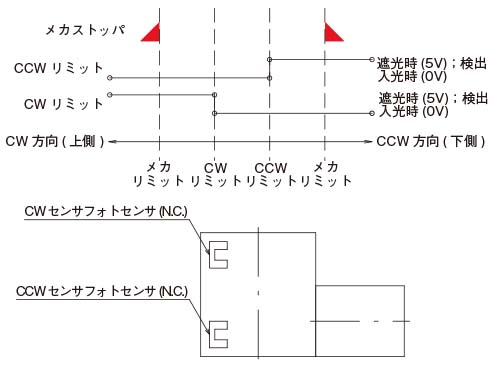

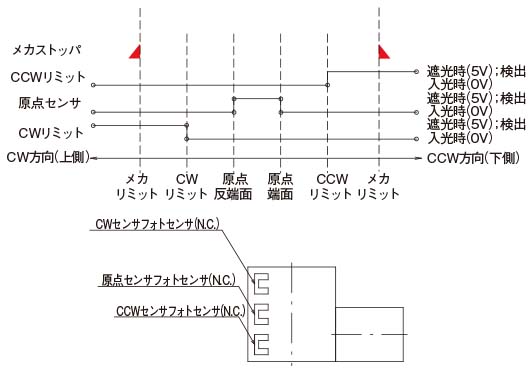

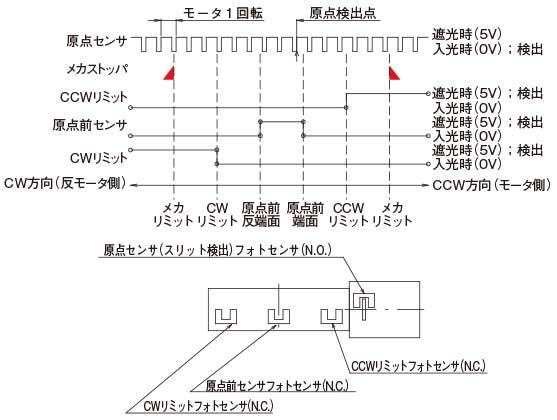

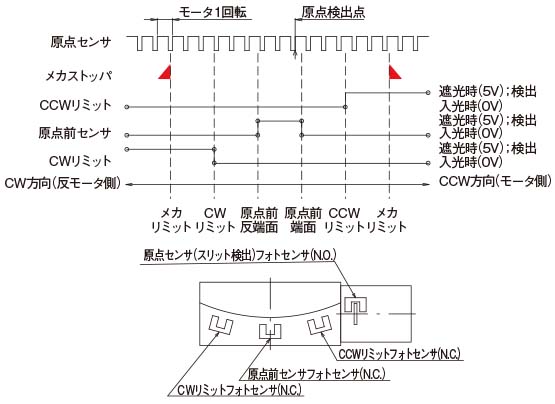

Timing Chart 1 ALS-106-H1PC, ALD-106-H1PC, ALZ-106-HP, etc.	Timing Chart 2 MSS-150D, ALS-6012-G1M, ALD-6012-G1M, etc.

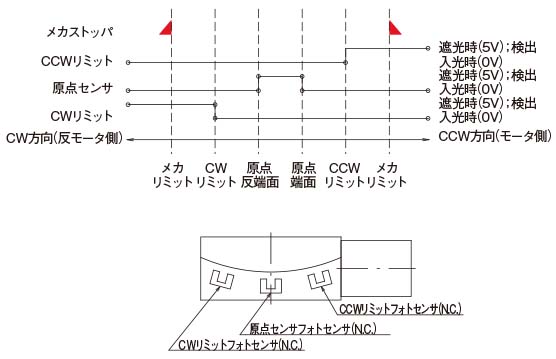

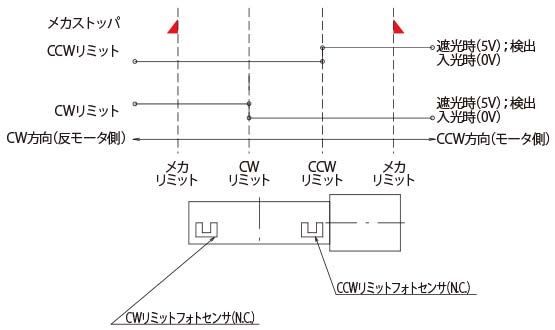

Timing Chart 3 ALS-4011-G1L, ALD-4011-G1L, ALS-3050-CT, etc.	Timing Chart 4 ALS-301-HM, ALD-301-HM, ALZ-301-HM, etc.


Timing Chart 5 ALV-102-HP, ALV-104-HP, etc.	Timing Chart 6 ALV-901-HP, ALV-902-HP, etc.


Timing Chart 7 ALV-600C-H0M, ALV-600C-H1M, etc.	Timing Chart 8 ALV-3005-HM, etc.


Timing Chart 9 ATS-9030-HP, TAD-9020-HP, etc.	Timing Chart 10 ATS-C616C-HM, ATD-C612C-HM,etc.

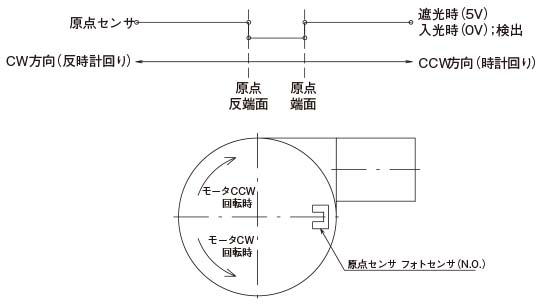

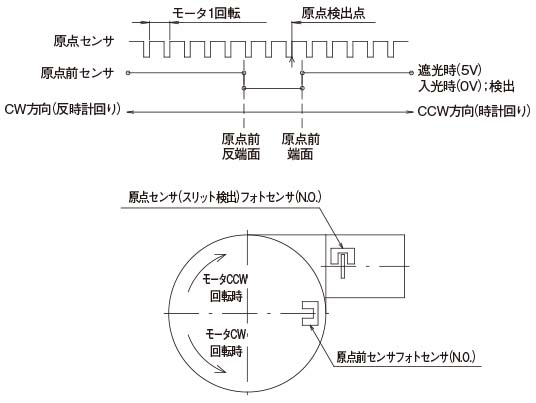

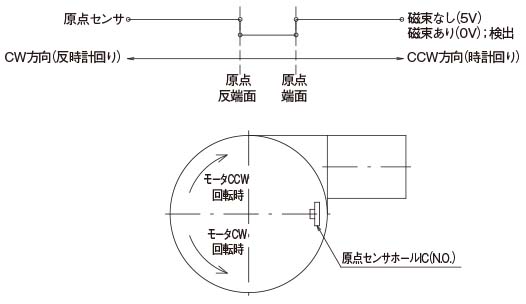

Timing Chart 11 ARS-936-HP, RAS-136-HP, etc.	Timing Chart 12 ARS-336-HM, etc.

Timing Chart 13
ARS-6036-GM,etc.

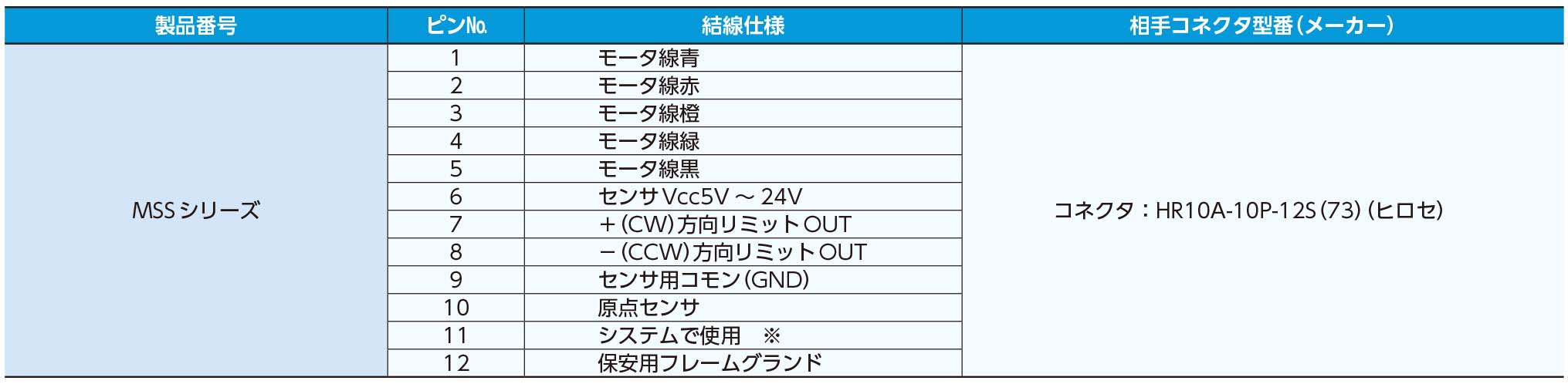

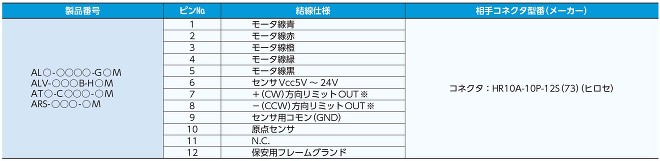

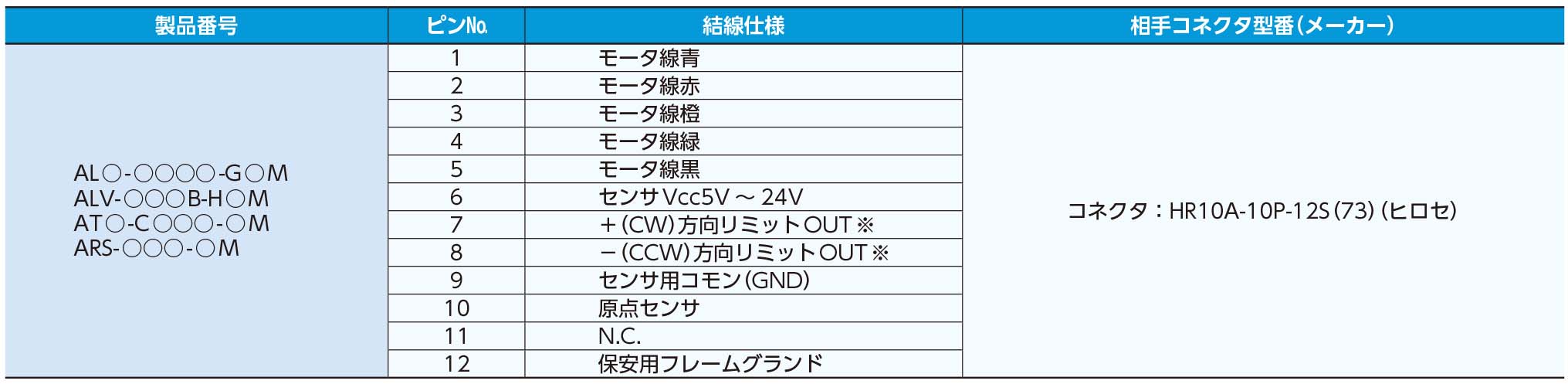

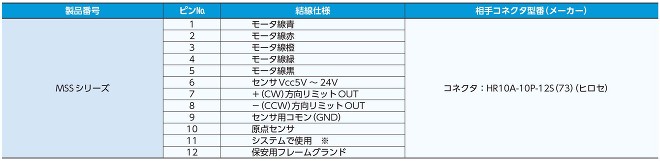

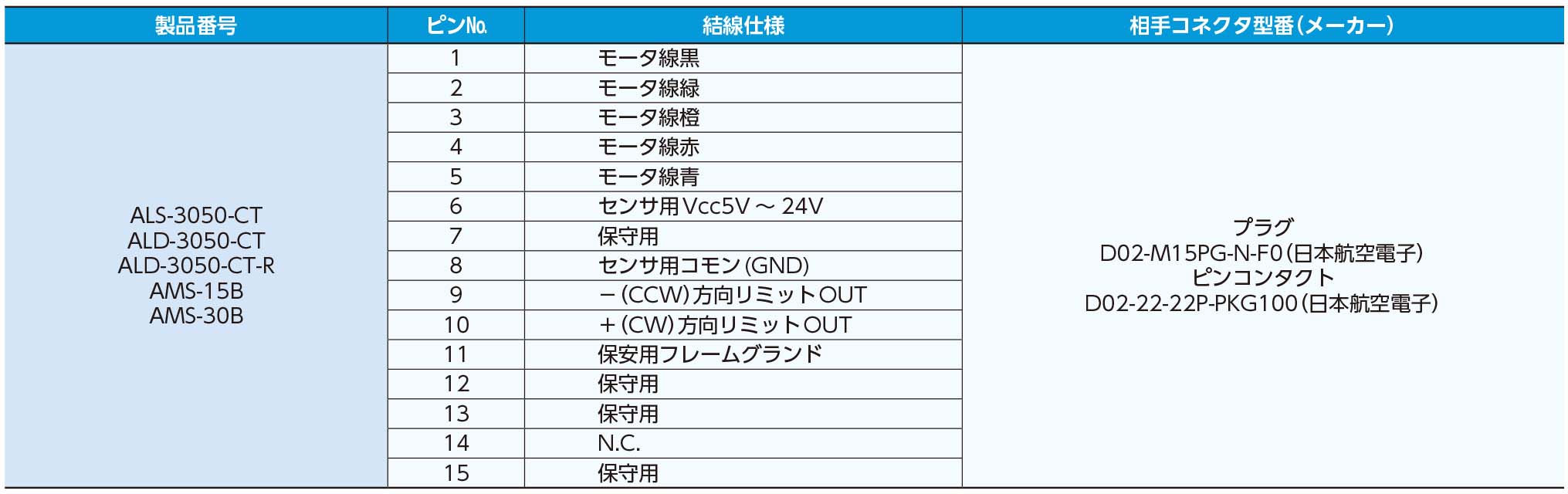

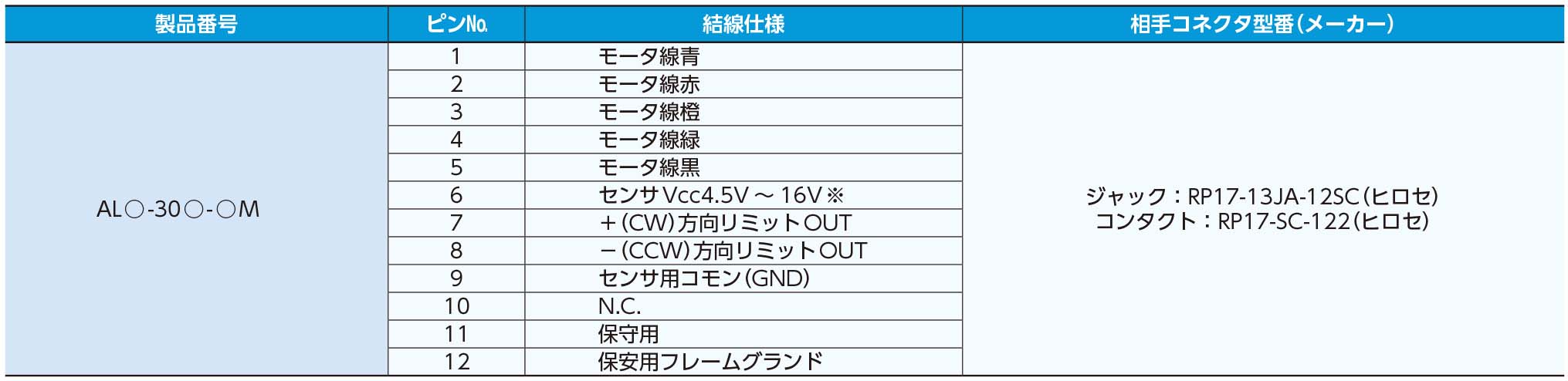

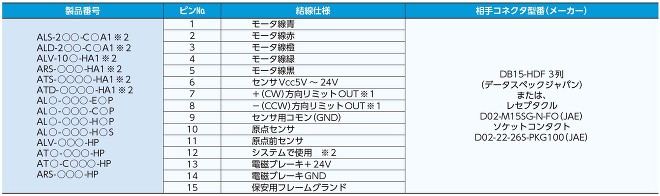

Connections to Motorized Stage Connectors

Note: Only the ALV-3005-HM uses Vcc5V - 24V

Note: Rotation stage ARS has no connection as it has no limit sensor

Note: Rotation stage ARS has no connection as it has no limit sensor
Note: New motorized stage is using Pin number 12 by the system and cannot be used by the customer.

Note: QT-B series controller is using Pin number 11 by the system and cannot be used by the customer.
