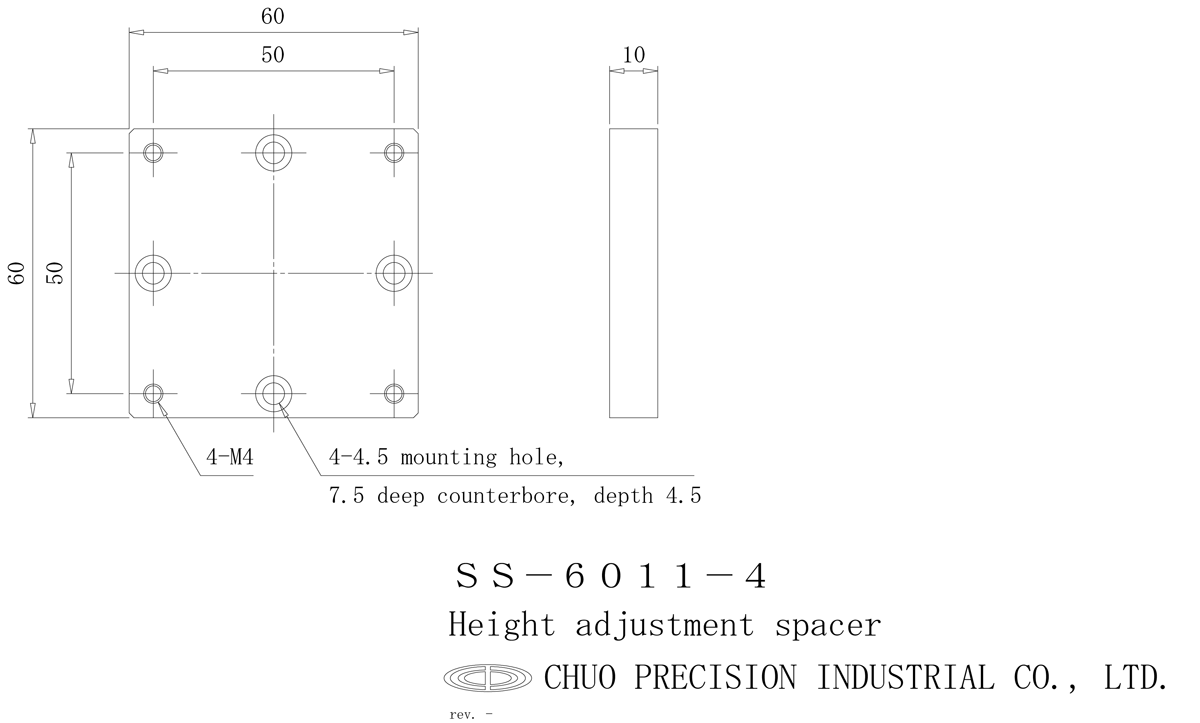

SS-6011-4

1
Height adjustment spacer 10t
Estimate separately
Classification Height adjustment spacer
Size 60 mm x 60 mm
YESRoHS対応状況

Product documentation

Description

A spacer that adjusts the height of stages, etc.
Height can be adjusted in 1 mm increments either individually or in combination.

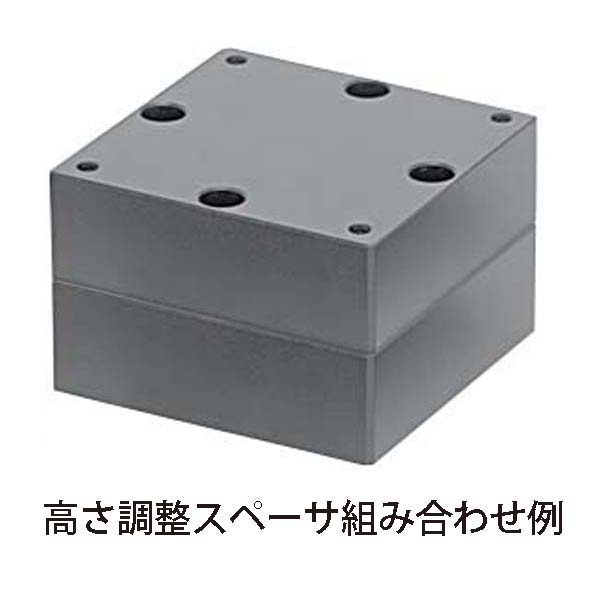

10 mm thick and 20 mm thick spacers are available with different fixing positions so that they can be easily fixed when combining multiple spacers.
If you need a thickness of 50 mm or more, you can specify the thickness up to 100 mm. Please specify the required thickness.
(Example) If you need a size of 60 mm x 60 mm and a thickness of 80 mm, use SS-6011-80.

Specifications

Classification Height adjustment spacer
Size 60 mm x 60 mm
Thickness 10 mm
Weight 0.09 kg
Material / Surface treatment Aluminum alloy/Black Alumite
