XY Stages

LD-7042-C7

1

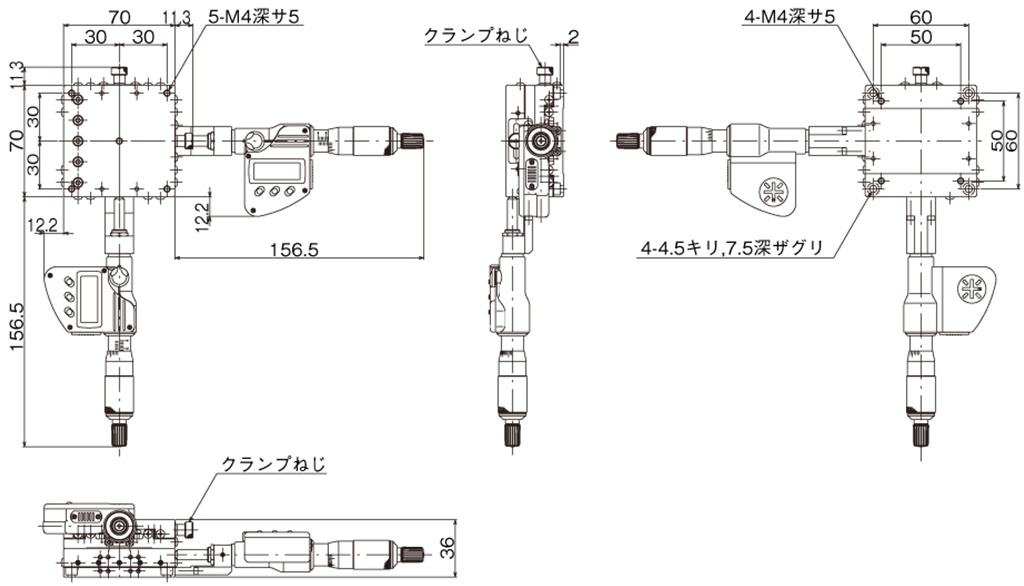

High-grade XY axis stage 70 x 70 (Standard type)
Estimate separately
Travel +/-6.5 mm
Table size 70 mm x 70 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

A high precision and high rigid manual stage by using HG-VCR method for the moving guide.
There are standard types and symmetrical types, and symmetrical configurations are also possible.
Transfer method is digimatic micrometer head.
Clamp method is plate clamp.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.
▲PAGE TOP

Specifications

Direction of travel XY axis two directions
Table size 70 mm x 70 mm
Clamp method Clamp plate
Mounting position Center
Transfer mechanism MHN4-25MX (Digimatic micrometer)
Travel +/-6.5 mm
Lead of actuator 0.5 mm
Scale interval Digital display 0.001 mm
Minimum resolution 1 μｍ
Guiding method HG-VCR (V-groove and cross rollers)
Travel accuracy HV Straightness (horizontal and vertical) 1 μｍ
Travel accuracy YP Yawing 15sec, Pitching 25sec
Allowable moment Yawing 1500 N･cm, Pitching 1500 N･cm, Rolling 1500 N･cm
Moment rigidity Yawing rigidity 0.08 sec/N・cm, Pitching rigidity 0.06 sec/N・cm, Rolling rigidity 0.06 sec/N・cm
Parallelism 30 μｍ
Parallelism of motion 14 μｍ
XY Perpendicularity 10 μｍ
Load capacity 239.1 N (24.4 kgf)
Weight 1.6 kg
Material / Surface treatment Stainless steel/Black chromium oxide
Standard accessories Inspection certificate
Mounting screw : Hexagon socket head cap screw M4, 4 screws
