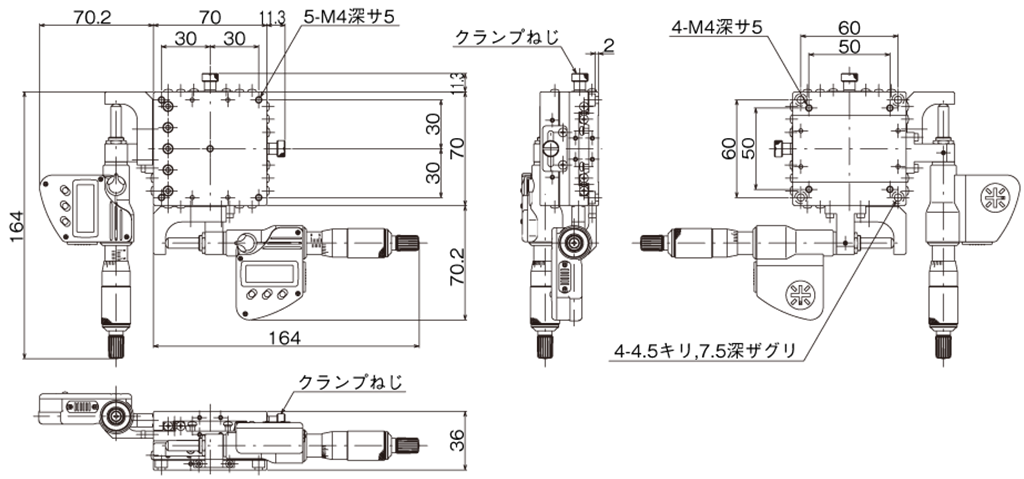

| Direction of travel |
XY axis two directions |
| Table size |
70 mm x 70 mm |
| Clamp method |
Clamp plate |
| Mounting position |
Side |
| Transfer mechanism |
MHN4-25MX (Digimatic micrometer) |
| Travel |
+/-6.5 mm |
| Lead of actuator |
0.5 mm |
| Scale interval |
Digital display 0.001 mm |
| Minimum resolution |
0.001 mm |
| Guiding method |
HG-VCR (V-groove and cross rollers) |
| Travel accuracy HV |
Straightness (horizontal and vertical) 0.001mm |
| Travel accuracy YP |
Yawing 15sec, Pitching 25sec |
| Allowable moment |
Yawing 1500 N･cm, Pitching 1500 N･cm, Rolling 1500 N･cm |
| Moment rigidity |
Yawing rigidity 0.08 sec/N・cm, Pitching rigidity 0.06 sec/N・cm, Rolling rigidity 0.06 sec/N・cm |
| Parallelism |
0.030 mm |
| Parallelism of motion |
0.014 mm |
| XY Perpendicularity |
0.010 mm |
| Load capacity |
239.1 N (24.4 kgf) |
| Weight |
1.6 kg |
| Material / Surface treatment |
Stainless steel/Black chromium oxide |
| Standard accessories |
Mounting screw : Hexagon socket head cap screw M4, 4 screws |
