Rotary Stages

RS-627

1
Rotary slim stage, gear type φ60
Estimate separately
Table size φ60 mm
YESRoHS対応状況

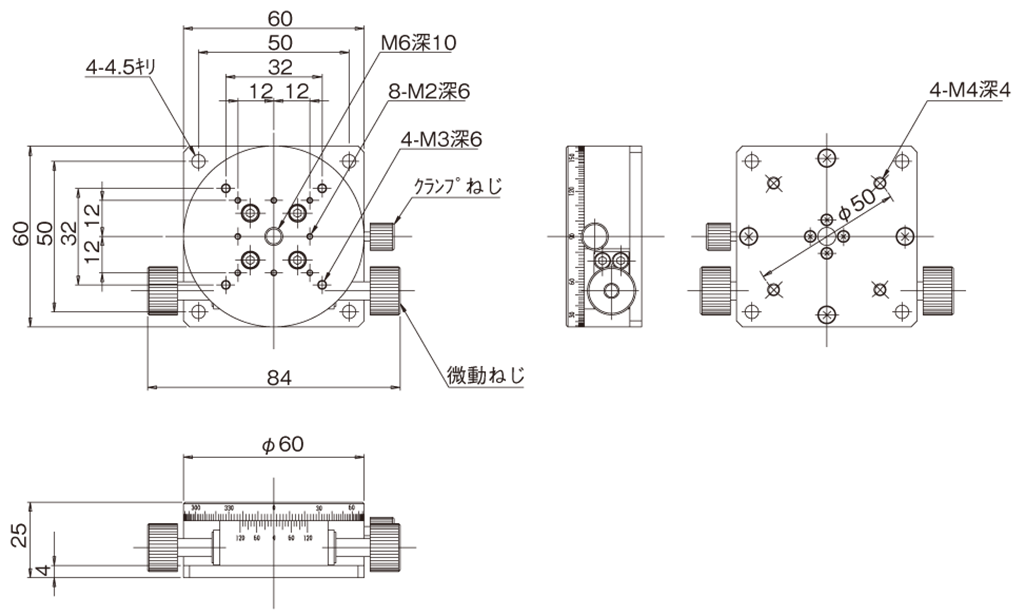

Product documentation

Description

Rotary (rotation) stage by using a worm gear for transfer metod.
A sliding guide is used for moving guide, allowing 360 degree fine movement.
It can be fixed with a clamp at any position.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

Specifications

Direction of travel Rotation
Table size φ60 mm
Clamp method Screw knob
Mounting position Double coarse handle
Fine feed system Worm gear
Travel 360° (fine)
Lead of actuator Approx. 6.5°
Scale interval Vernier reading 10'
Guiding method Sliding
Parallelism 0.03 mm
Circularity 0.04 mm
Deflection 0.02 mm
Load capacity 49 N (5 kgf)
Weight 0.3 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M4, 4 screws
