TS-R612

1
Goniometer stage 60 x 60
Estimate separately
Travel +/- 4.5°
Table size 60 mm x 60 mm
YESRoHS対応状況

Product documentation

Description

One-axis tilt stage.
Our unique complex coupling mechanism enables fine and extremely smooth movements.
Dovetail groove (D-T method) is used for the moving guide.
It is widely used for positioning applications such as cameras and sensors.

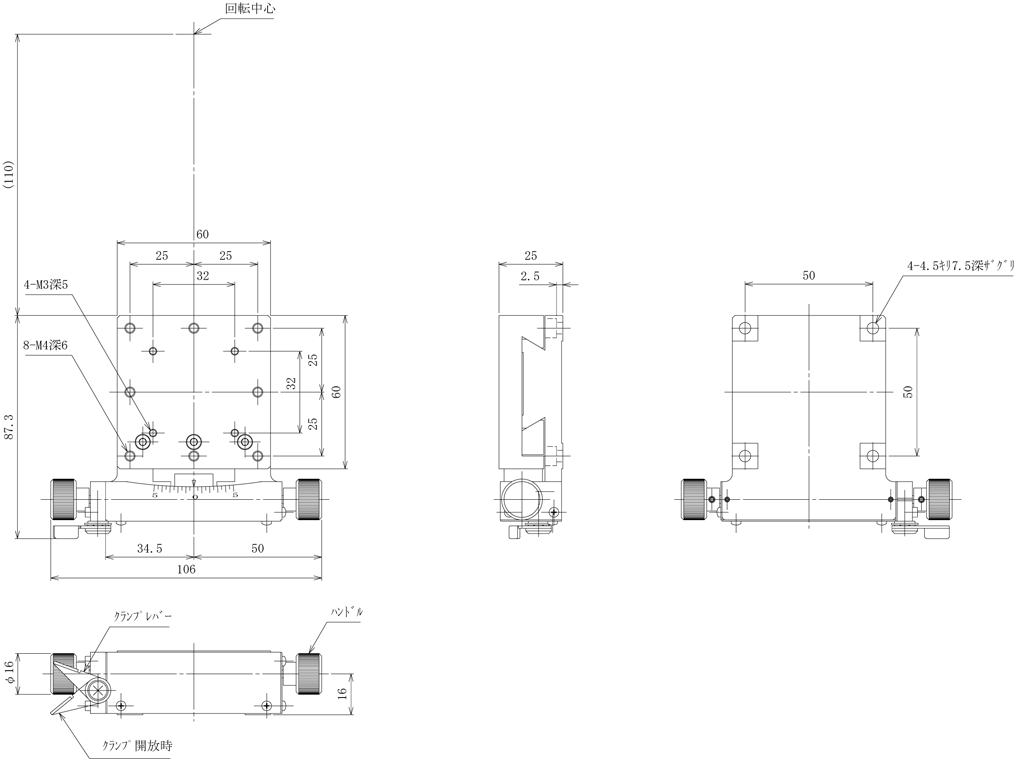

Specifications

Direction of travel Tilt, one axis
Table size 60 mm x 60 mm
Clamp method Lever type
Transfer mechanism Precision screw, Composite coupling mechanism swivel
Travel +/- 4.5°
Lead of actuator Approx. 9' 27"
Scale interval Scale 30'
Guiding method Dovetail
Center of rotation 140 mm
Positioning accuracy of rotatation center φ0.1 mm
Load capacity 29.4 N (3 kgf)
Weight 0.8 kg
Material / Surface treatment Blass/Black hard chrome
Standard accessories Mounting screw : Hexagon socket head cap screw M4, 4 screws
