TS-312

1
Goniometer stage 30 x 30
Estimate separately
Travel +/- 10°
Table size 30 mm x 30 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

One-axis tilt stage.
Combine one-axis tilt stages with different rotation center heights to form a two-axis tilt stage with the same rotation center.
Dovetail groove (D-T method) is used for the moving guide.
The handle is separated.
It is widely used for positioning applications such as cameras and sensors.
▲PAGE TOP

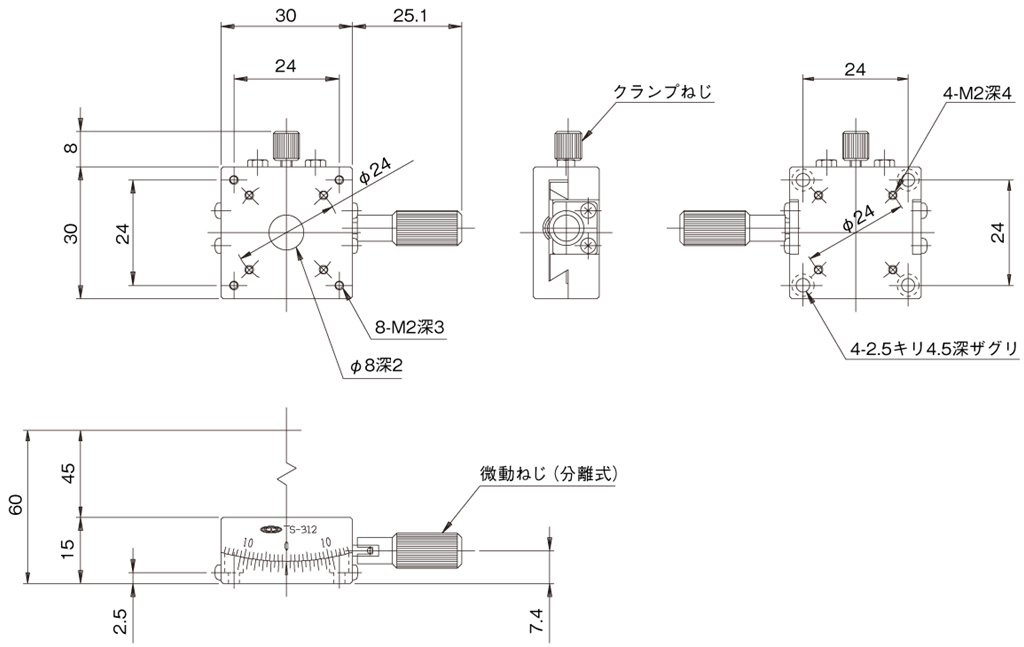

Specifications

Direction of travel Tilt, one axis
Table size 30 mm x 30 mm
Clamp method Screw knob
Transfer mechanism Worm gear
Travel +/- 10°
Lead of actuator Approx. 1°48'
Scale interval Vernier reading 5'
Guiding method Dovetail
Center of rotation 45 mm
Positioning accuracy of rotatation center φ0.1 mm
Load capacity 19.6 N (2 kgf)
Weight 0.1 kg
Material / Surface treatment Blass/Black hard chrome
Standard accessories Mounting screw : Hexagon socket head cap screw M2, 4 screws
