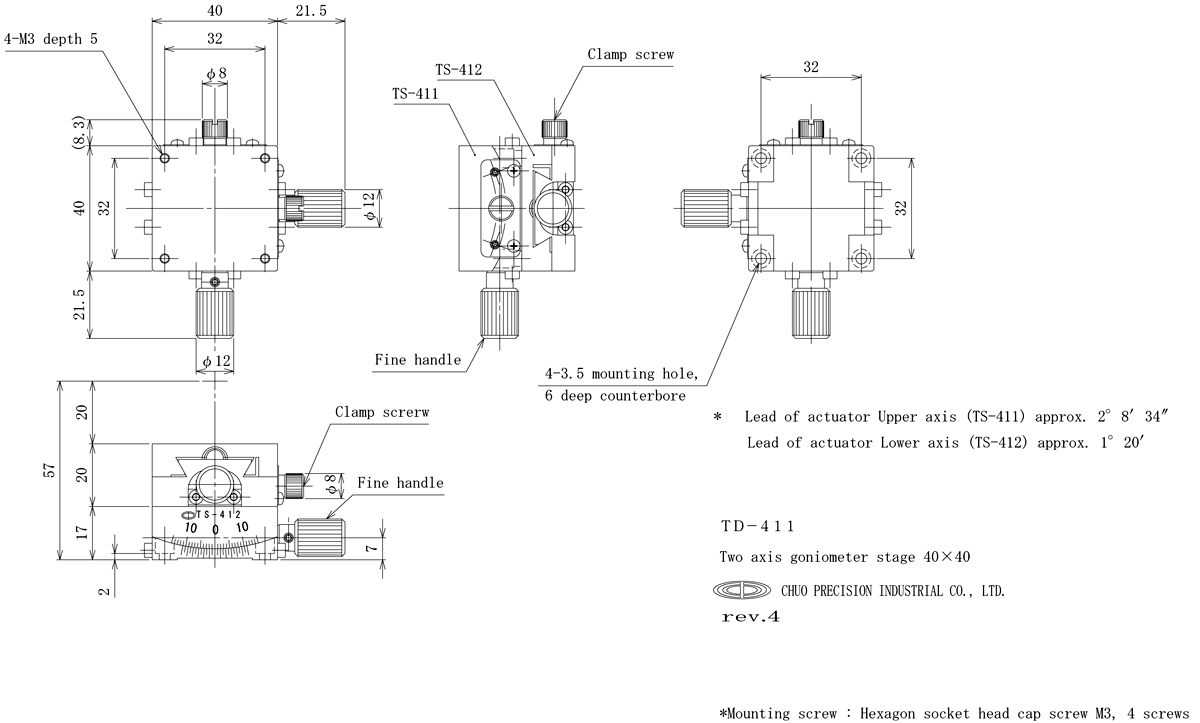

TD-411

1
Two axis goniometer stage 40 x 40
Estimate separately
Travel Upper axis : +/- 20°, lower axis : +/- 15°
Table size 40 mm x 40 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

Two-axis tilt stage.
Combine one-axis tilt stages with different rotation center heights to form a two-axis tilt stage with the same rotation center.
Dovetail groove (D-T method) is used for the moving guide.
It is widely used for positioning applications such as cameras and sensors.
▲PAGE TOP

Specifications

Direction of travel Tilt, two axis
Table size 40 mm x 40 mm
Clamp method Clamp plate
Transfer mechanism Worm gear
Travel Upper axis : +/- 20°, lower axis : +/- 15°
Lead of actuator Upper axis approx. 2°8' 34", lower axis approx. 1°20'
Scale interval Vernier reading 5'
Guiding method Dovetail
Center of rotation 20 mm
Positioning accuracy of rotatation center -
Load capacity 29.4 N (3 kgf)
Weight 0.45 kg
Material / Surface treatment Blass/Black hard chrome
Standard accessories Mounting screw : Hexagon socket head cap screw M3, 4 screws
